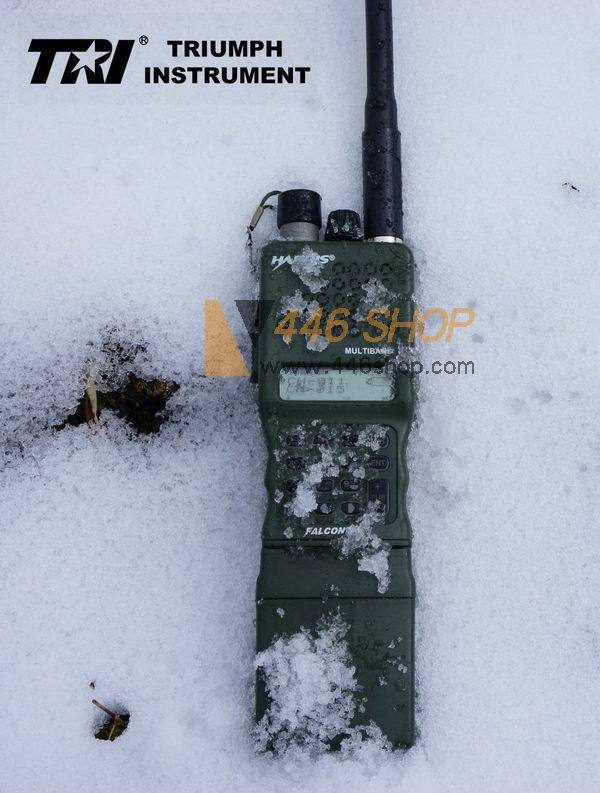

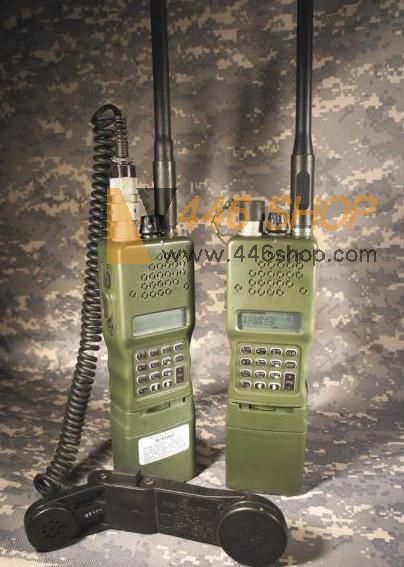

HARRIS TRI PRC-152 (UV) Multiband Military Walkie Talkie IPX-5 Two Way Radio
The PRC-152 is the Harris Replica OEM model, not the genuine Harris products. It is from TRI Manufacter.

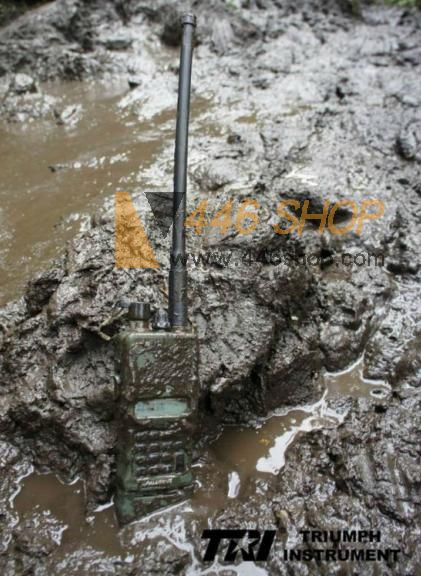

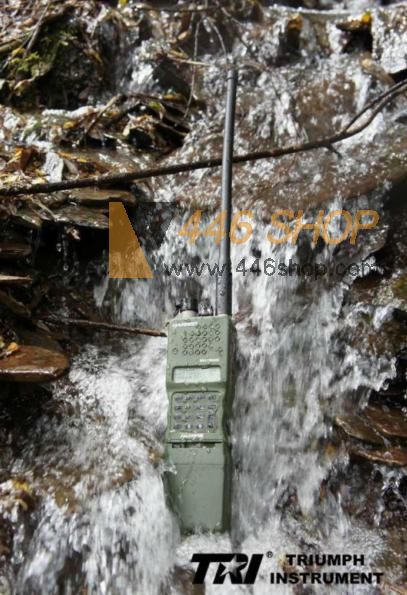

The models strive to do the design of the three anti waterproof, shockproof, dustproof.

Battery connection structure is fully compatible with the original product,

and comes standard with a large capacity lithium battery

To equipped with HARRIS genuine OEM antenna

Two-stage double-Show dual display

The U / V transceiver multi-segment receiver

Full-function operating button

Dot-matrix LCD screen with the original product the same principle

Stainless steel 6-pin connector Universal Army Regulation standard interface

Adapter designed specifically for users of the KENWOOD Headset / PTT.

Name:PRC-152 military replica intercom / handheld radio
Brand:TRI instrument (TRIUMPH INSTRUMENT)
Weight:GW 1.2KG ( Package ) Weight about 800g
Color: olive green Oliver Green.

Introduction :
TRI instrument PRC-152 (UV) is a full-featured three two-stage anti- FM radio, original product standard structure , large capacity lithium battery 4800mHA enables users to more than a week of standby time , equipped with two-stage high-gain antenna , two-stage double- Shou dual display , UV whole paragraph transceiver receives multistage , full-featured menu operation keys , etc., dot-matrix liquid crystal display according to the original product HARRIS FALCON. military standard stainless steel waterproof connector universal primary product interface.

[ TRI ] on PRC-152 relay channels simple steps:

1 : Set the receive frequency === '(Menu 13 ) to set the tone === ' (Menu 30 ) to set down the line === ' OK to exit
Example : 433.000 == ' ( Menu 13 ) to set the tone 88.5 , determine ==' ( Menu 30 ) to set the down - No. == ' OK to exit

2 : Save the receive frequency === '(Menu 32 ) to determine the exit
Example : 433.000 == ' ( menu 32 ) is saved to the desired channel , such as 001

3 : Save the transmission frequency === ' ( menu 32 ) with the same transmission frequency channel storage === ' OK to exit
Example : 430.000 == ' ( menu 32 ) Select CH-001 stored once ==' OK to exit

This operation is complete when the relay settings

Features:

1: working band

FM: 87-108MHZ (receiver)

VHF: 136~174.995 MHZ(Receiving/Transmitting)
UHFO: 350~390.995 MHZ(Receiving)
UHF1: 400~470.995 MHZ(Receiving/Transmitting)
UHF2: 480~520.995 MHZ(Receiving)

2: work mode: frequency mode, channel mode

3: FM radio digital tuner

4: dual-band point

5: U / U, the V / V, and the U / V, and the V / U-dual segment by: optionally

6: any band dual-frequency point waiting

7: DTMF dual-tone multi-frequency signaling systems

8: remote, on-site, a distress signal transmitter coordinates

9: group call, group call, selective call

10: inspections, monitoring, remote halo, remote killing function

11: 50 set of standard CTCSS, 105 DCS

12: nonstandard CTCSS (from 60HZ to 259.9HZ within any editor)

13: launch the mute and receive mute separate set

14: transmit power, low two tranches during the launch press ALARM key can be arbitrarily switched transmit power size

15: Launch timeout limit

16: 5 file stepper frequency (5K, 6.25K, 10K, 12.5K, 25K)

17: a variety of power-saving mode

18: VOX VOX

19: (bandwidth / narrow channel bandwidth optional)

20: channel busy embargoed

21: Low electro-acoustic and light tips

22: Automatic backlight

23: Auto / manual keypad lock

24: emission backlight color adjustable

25: Receive backlight color adjustable

26: Standby backlight color adjustable

27: Three-channel display mode (frequency, channel number, the name of the channel)

28: ANI identity code (incoming call display)

29: call ringing

30: DTMF sidetone switch (automatic code-fat, keyboard send code automatically + keyboard send code)

31: three types of scanning (time, carrier, search)

32: PTT-ID function (optional Press PTT issued yards, release the PTT hair code, press the release can be sent code)

33: variety of Mute way (mute, mute and optional signaling, mute plus optional signaling)

34: optional frequency mode frequency difference direction

35: Frequency mode frequency difference frequency between 0 ~ 69.9875MHZ optional

36: Menu direct function digital keyboard

37: frequency, channel, menu items quick search function

38: channel parameters in the frequency mode editing storage

39: 128 storage channel

40: scrambler function (the transceiver frequency inversion)

41: U / V span transceiver access inter-segment relay function

42: Cable Copy

43: Computer Programming

Specifications:

Frequency Range:
VHF: 136~174.995 MHZ(Receiving/Transmitting)
UHFO: 350~390.995 MHZ(Receiving)
UHF1: 400~470.995 MHZ(Receiving/Transmitting)
UHF2: 480~520.995 MHZ(Receiving)
Memory Channels: 128 channels
Working Mode: Co-channel or Dis-channel simplex
Working Temperature:-30 degrees centigrade ~ +60 degrees centigrade
Operation Output: 1W/4W
Maximum Frequency Deviation: 5KHZ
Frequency Stability: 2.5ppm
Audio Output Power: 500mW
Transmitting Current: 0.7A/1.0A/1.5A
Standby Current:46mA (It is 15mA in battery pack save mode.)
Dimension: 58*105*38mm
Waterproof degree: IPX7
Battery type:8.4V 4800MAH

Each Unit package contain:

1 x Radio

1 x Battery

1 x Antenna

1 x Charger

1 x Manual book
