HIGRADE HG-78R 4W VHF/UHF Dual Band Two Way Radio 136-174Mhz/400-480Mhz
HIGRADE HG-78R The transcevier is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels
50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- Hight /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
|
■ Dual band, dual display, dual standby |
■ A/B band independent operation |
|
■ 128 groups channels storage |
■ Shortcut menu operation mode |
|
■ VFO & Memory channels scan |
■ Emergency Alarm |
|
■ Tri-color background light selectable |
■ 0~9 grades VOX selectable |
|
■ PTT & ANI ID |
■ FM radio and 25 stations storage |
|
■ Voice companding |
■ 50 CTCSS/104 DCS |
|
■ |
■ PC programmable |
|
■ Wide/Narrow Band(25kHz/12.5kHz) |
■ Transmitter time-out timer(TOT) |
|
■ High/Low TX power selectable |
■ Busy channel lock-out(BCLO) |
|
■ |
■ |
|
■ |
■ |
Specifications:
|
Item number |
HG-78R |
|
General |
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-480HZ (TX/RX) |
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension（W x H x D） |
100 x 52 x 32 mm |
|
Weight |
250g（including battery, antenna） |
|
Transmitter |
|
Output power |
4W / 1W (Max 5W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
＜5kHz(Wide) / ＜2.5kHz(Narrow) |
|
Spurious Radiation |
＜7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
＜10% |
Earpiece / Mic Type : KENWOOD Plug type
Antenna : SMA –Female
FOB Price: USD 29-33 / Set
MOQ: 100 Sets
Company: HIGRADE INDUSTRY CO.,LIMITED
Business Contact: sales@446shop.com
Attn: Mr.Adam Boys
Tel: +865925427248
Fax: +865925978619
Applications:
- Service Industry (Hotel, Restaurant, Supermarket .etc);
- Security, Property Management;
- Police, Firefighters, Education, Public Utilities;
- Construction Sites & Transportation;
- Warehouse, Ports & Logistic Industry;
- Manufacturing Industry;
Note:
1. Please contact us at first time for bulk order. Larger discount waits for you.
2. Please be responsible for custom tax if your local custom charge some custom tax.
About Us:
1.We are two way radio manufacturer,also radios and accessories larger wholesaler at the south of China;
2.Professional in two way radio field for 10 years;
Since its inception in 2003, the Company is exquisitely designed, hand well-known development and capacity markets, All our products with international quality standards, products are exported to overseas markets, many famous at home and abroad.
3.OEM/ODM service offered, we can design the packing box and LOGO mark as your request.
Note:
1).There are UHF and VHF bands for this radio,please note if you want UHF or VHF when you make payment,
or we will send you UHF one.

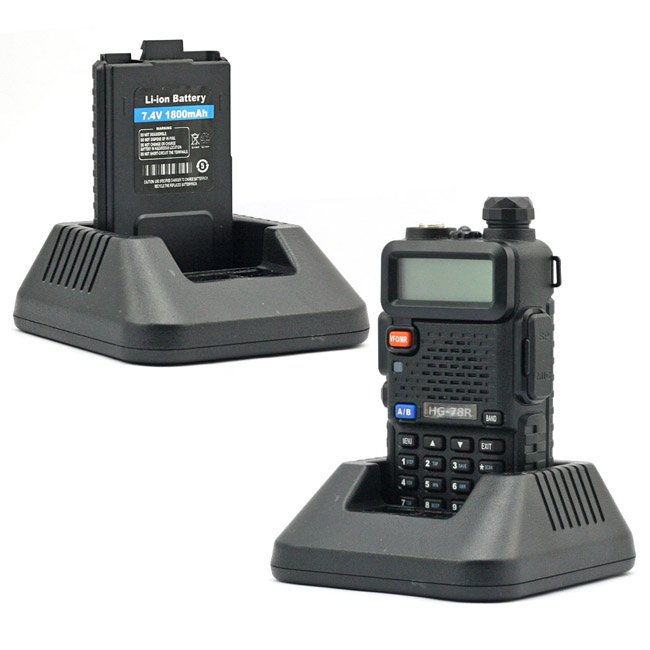

2).DESKTOP Charger With Wall PSU (100-240V)
|
