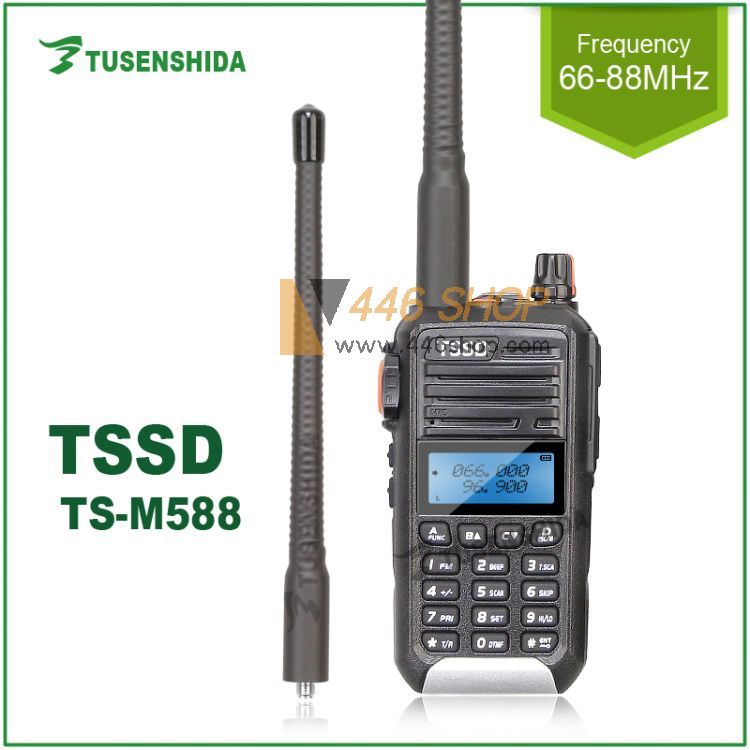

TSSD TS-M588 Walkie Talkie 66-88MHz Ham Two Way Radio Handheld Transceiver CTCSS CDCSS
Features
-CTCSS / CDCSS
-Voice Encryption
-CN/English Voice Prompt
-VOX Function
-PC Programming
-Emergency Alarm

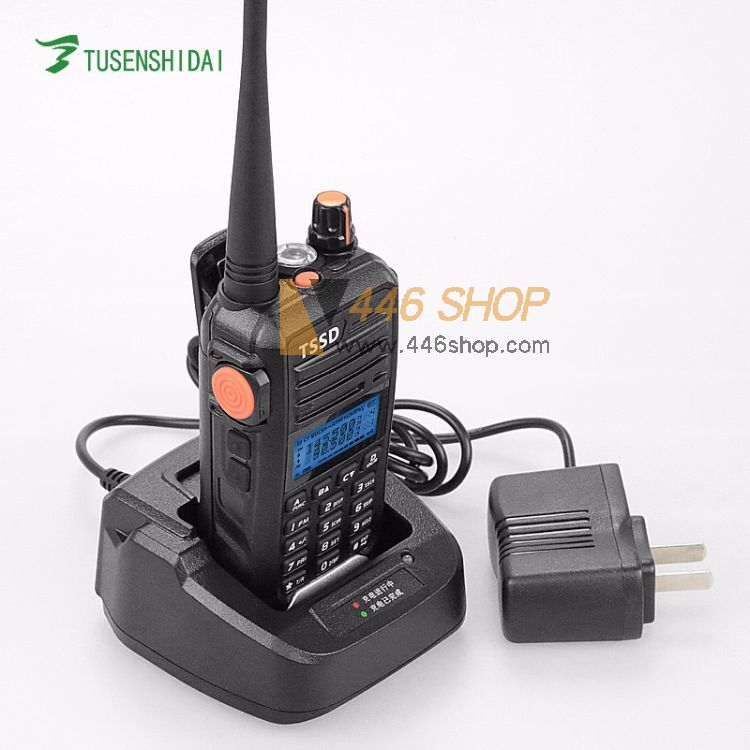

-Desktop Charger
-Battery Save
-Low Voltage
-Time-out timer

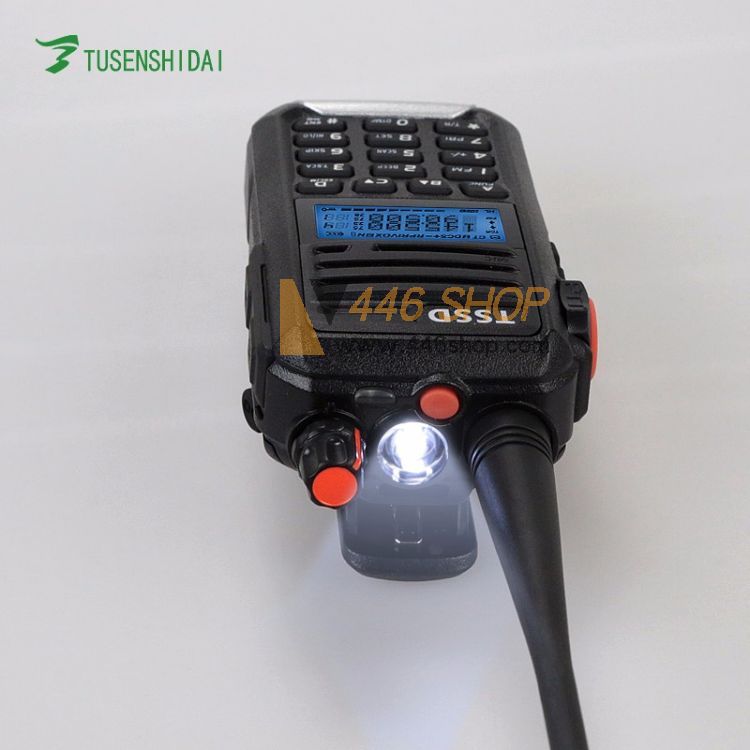

-Flashlight
|
General
|
|

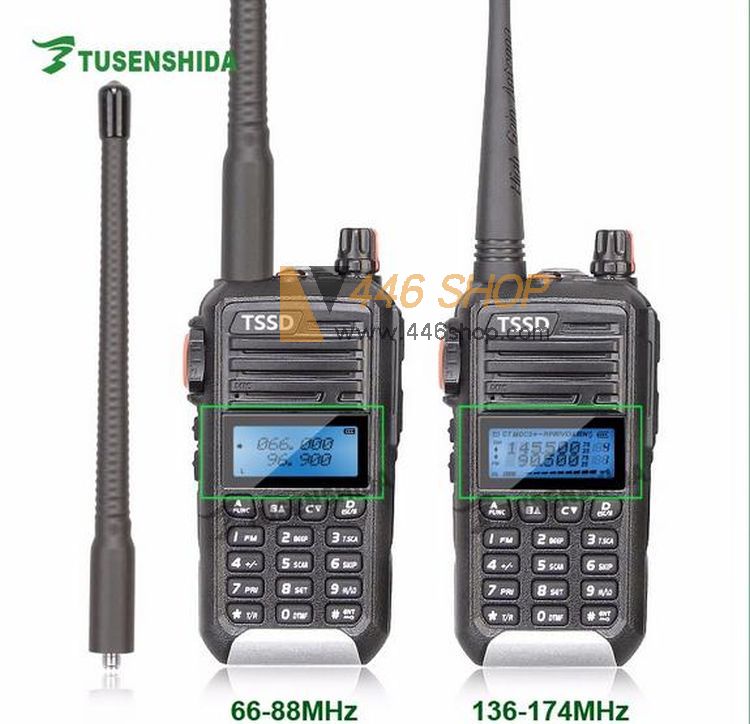

Frequency Range(Simplex Band)
|
66-88MHz
136-174MHz
400-470MHz
|
|
Channel Capacity
|
128
|
|
Channel Spacing
|
25KHz(wide band)
20KHz(middle band)
12.5KHz(narrow band)
|
|
Operated Voltage
|
DC 7.4V
|
|

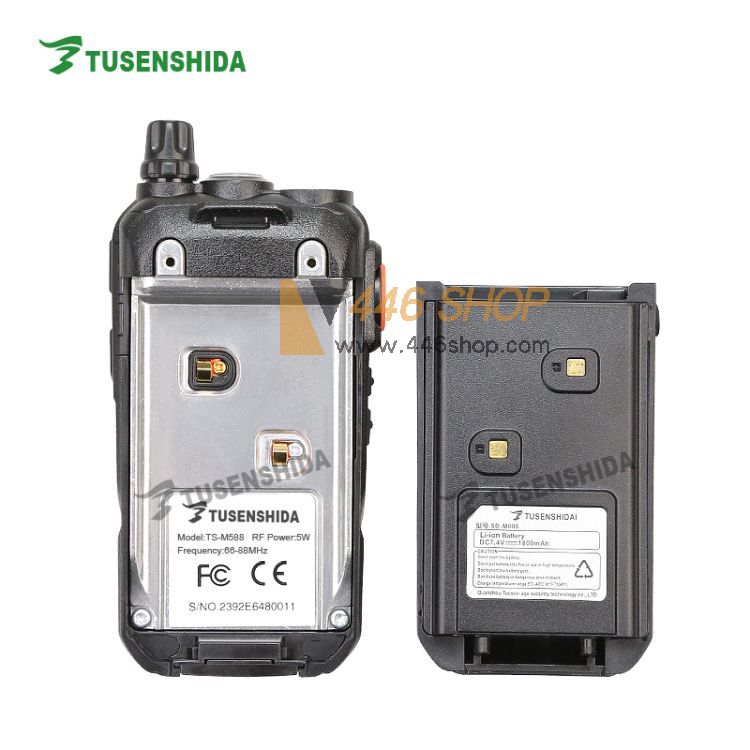

Battery
|
1800MAh Li-ion
|
|
Battery Life
|
(5-5-90 duty cycle) About 16 hours
|
|
Frequency Stability
|
±2.5ppm
|
|
Operated Temperature
|
-20°c-+55°c
|
|
Antenna Impedance
|
50Ω
|
|
Dimensions (L×W×H)
(with battery and antenna)
|
120×60×34 mm
|
|
Weight (with battery/antenna)
|
222g
|
|
Communication Range
|
Above 10km
|
|
Receiver
|
Wide band
|
Narrow band
|
|
Sensitivity (12dB SINAD)
|
≤0.25 uV
|
≤0.35 uV
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
|
Intermodulation
|
≥65dB
|
≥60dB
|
|
Spurious Response
|
≥70dB
|
≥70dB
|
|
Audio Response
|
+1-3dB(0.3-3KHz)
|
+1-3dB(0.3-2.55KHz)
|
|
FM Noise
|
≥45dB
|
≥40dB
|
|
Audio Distortion
|
≤5%
|
≤5%
|
|
Audio Power Output
|
1000mW
|
1000mW
|
|
Transmitter
|
Wide band
|
Narrow band
|
|
RF Power Output
|
5W/2W/0.5W
|
|
Modulation
|
16K/F3E
|
11K/F3E
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥62dB
|
|
FM Noise
|
≥40dB
|
≤36dB
|
|
Spurious Emission
|
≤-36dB
|
≤-36dB
|
|
Audio Response
|
+1-3dB(0.3-3KHz)
|
+1-3dB(0.3-2.55KHz)
|
|
Audio Distortion
|
≤5%
|
≤5%
|
Each Unit Packing Contain:
1x TSSD TS-M588
1x 7.4V/1800mah Li-ion Battery Pack
1x Antenna
1x Belt clip
1x Use's Manual
1x Desktop Charge
1x PTT Earpiece
