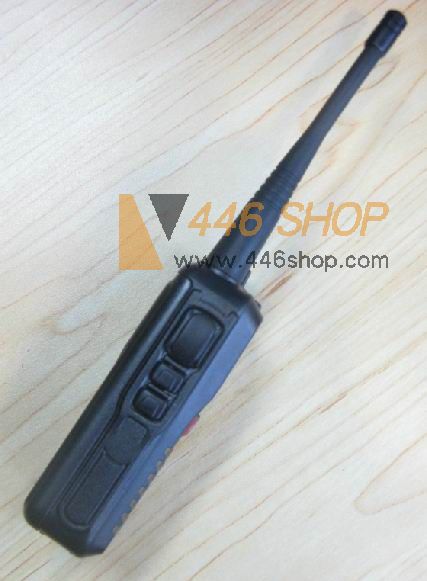

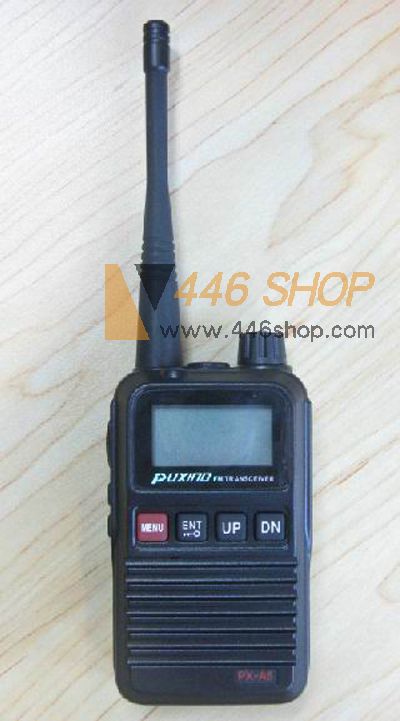

PUXING PX-A6 UHF 400-470Mhz Small Radio
-
All channel scan and priority channel scan
-
Scan types :Carrier, time and search
-
Busy channel lock: carrier/QT/DQT
-
VOX sensitivity:0-9 levels adjustable
-
Transmitter power：0.5W
-
Squelch level 0-9
-
Lamp control: On/off/automatic
-
Beep tone: Beep on/off
-
Keypad lock function: Manual/auto optional
-
Transmit limited (TOT): off-420S optional
-
CTCSS and DCS setting
Receive only/Transmit only/50 CTCSS and 104 DCS
-
Select the LED/emergency call by programming software
-
Volume control knob to turn on/off the power or turn as channels selector
-
PC programming and store channel
-
Charging with USB cable 5V DC or 110V/220V AC
-
DC 3.7V single li-ion battery compatible with mobile phone battery (Nokia mobile)
-
MINI compact size 84*48*25 cm
-
Battery power indicator
-
Built-in digital FM radio receiver
-
Frequency Space: Narrow
-
Battery save function
-
Channel Name Edited
-
*Transmitter power：High power and low power switchable
-
*+/-offset:+/-frequency optional
-
*offset step optional:12.5k/25k/6.25k
-
*Output power: UHF 400-470mhz 2w
-
*Channel mode and frequency mode switchable
-
*Repeater shift compatible: +/-/0
-
*Transmit and receive frequency reverse
-
*Channel step: 25khz and 12.5khz
-
*Frequency Space: Narrow and Wide
FEATURE
Half-Dual band (Single TX+Dual RX)
Frequencyc:136-174,400-470MHz
VOX function
Mini Compact type
Keypad Lock:Manual/Auto Optional
All channels scan and Priority channel scan
Emergency call
Single Li-ion battery
50 CTCSS and 104 DCS
|
PX-A6 General
|
|
Frequency Range
|
Single band VHF:136-174MHz or UHF:400-470MHz
|
|
Channel Capacity
|
128 channels
|
|
Channel Spacing
|
25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
|
|
Phase-locked Step
|
5KHz,6.25KHz
|
|
Operating Voltage
|
3.7V DC
|
|
Battery Life
|
More than 12 Hours (1200mAh),
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20°C +55°C
|
|
Size
|
84mm×48mm×25mm (not including antenna)
|
|
Weight
|
130 g (with battery, antenna)
|
|
Receiver (ETSI EN 300 086 standard testing )
|
|
RF Sensitivity
|
≤0.2μV
|
|
Adjacent Channel Selectivity
|
≥60dB
|
|
Intermodulation Rejection
|
≥65dB
|
|
Co-Channel Rejection
|
≥-8dB
|
|
Spurious Rejection
|
≥70dB
|
|
Audio Response
|
+2~-10dB
|
|
Audio distortion
|
≤3%
|
|
Block character
|
≥80dB
|
|
Transmitter (ETSI EN 300 086 standard testing )
|
|
Frequency Stability
|
±2.5ppm
|
|
Output Power
|
2W
|
|
Max Frequency Deviation
|
≤5KHz
|
|
Audio Distortion
|
≤3%
|
|
Adjacent Channel Power
|
≥65dB
|
|
Modulation character
|
+3dB~-3dB
|
|
Spurious Radiation
|
≤7.5uW
|
|
Occupied Bandwidth
|
≤16KHz
|
-

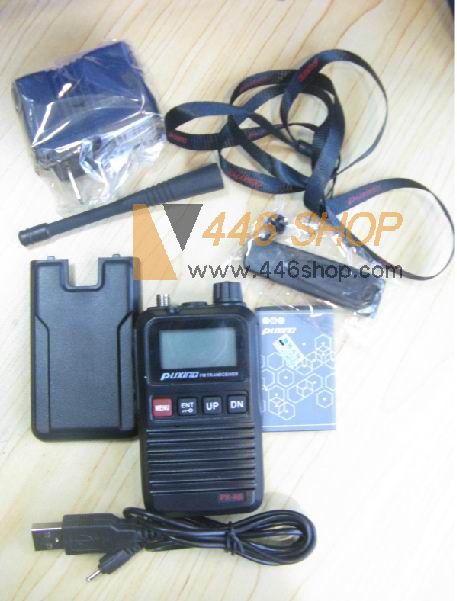

1x PUXING PX-A6. (UHF 400-470Mhz)
-
1x Li-ion Battery.
-
1x Antenna.
-
1x Belt Clip.
-
1x ENG Manual
-
1x Charger with Cable ( USB Cable)
-
1 x WRIST STRAP
