PX-V9 FM UHF/VHF Transceiver Two Way Radio
FEATURE
VHF136-174MHz UHF 400-470 MHz
16 store channels
Output power 5W
Moitor
Scan
Scan temperary delete
High/Low power selectable
Talk around
Reverse frequency function
VOX function
Busy channels lockout
DTMF ANI Encode
Squelch level 0-9 adjustable
TOT 0-270S
50 CTCSS and 105 DCS
Side keys programmable
Emergency Call
Battery Save
End roger
PX-V9 FM UHF/VHF Transceiver
|
General
|
|
Frequency Range
|
VHF: 136-174MHz
UHF: 400-470MHz
|
|
Channel Capacity
|
16 channels
|
|
Channel Spacing
|
25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
|
|
Phase-locked Step
|
5KHz,6.25KHz
|
|
Operating Voltage
|
7.4V DC
|
|
Battery Life
|
More than 12 Hours (1200mAh),
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20°C +55°C
|
|
Size
|
98mm×53mm×30mm (not including antenna)
|
|
Weight
|
190g (with battery, antenna)
|
|
Receiver (ETSI EN 300 086 standard testing )
|
|
|
Wide band
|
Narrow band
|
|
Sensitivity (12dB Sinad)
|
≤0.25μV
|
≤0.35μV
|
|
Adjacent Channel
Selectivity
|
≥70dB
|
≥60dB
|
|
Intermodulation
|
≥65dB
|
≥60dB
|
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
|
Hum & Noise
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
≤3%
|
|
Audio power output
|
500mW / 10%
|
|
Transmitter (ETSI EN 300 086 standard testing )
|
|
|
Wide Band
|
Narrow Band
|
|
Power Output
|
4W/5W
|
|
Modulation
|
16KΦF3E
|
11KΦF3E
|
|
Adjacent Channel
Power
|
≥70dB
|
≥60dB
|
|
Hum & Noise
|
≥40dB
|
≥36dB
|
|
Spurious Emission
|
≥-36dB
|
≥-36dB
|
|
Audio Response
|
+2~-3dB(0.3~3KHz)
|
+2~-3dB(0.3~2.25KHz)
|
|
Audio Distortion
|
≤3%
|
-
1 x PX-V9
-
1 x 7.4V 1200mah Li-ion Battery Pack
-
1 x Antenna
-
1 x Belt Clip
-
1 x ENG Manual
-

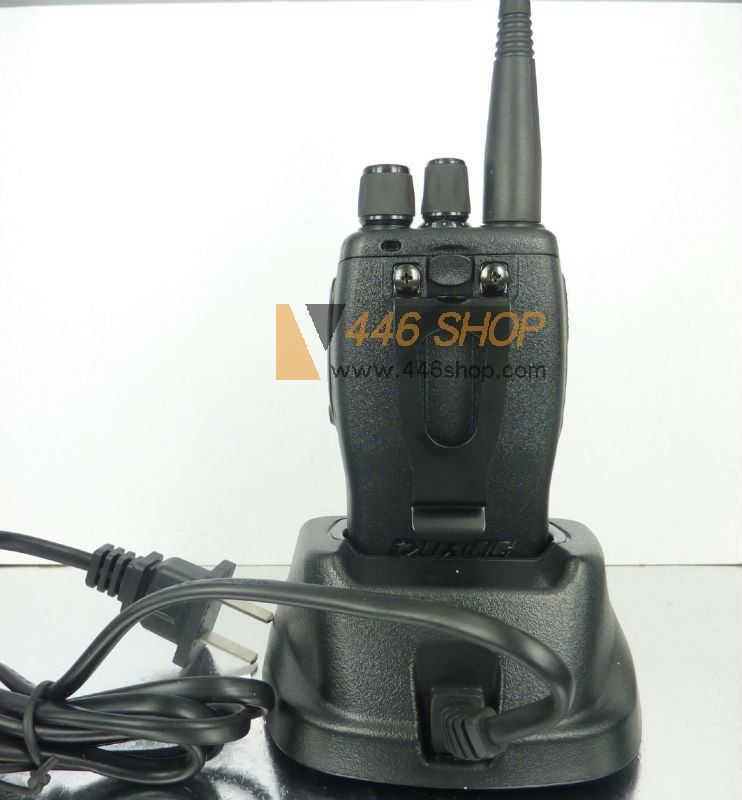

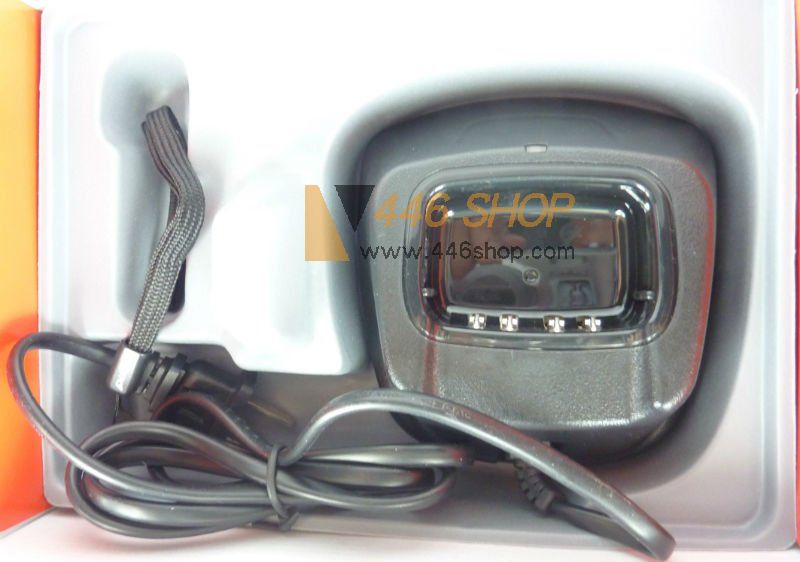

1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x PTT Earpiece for free
