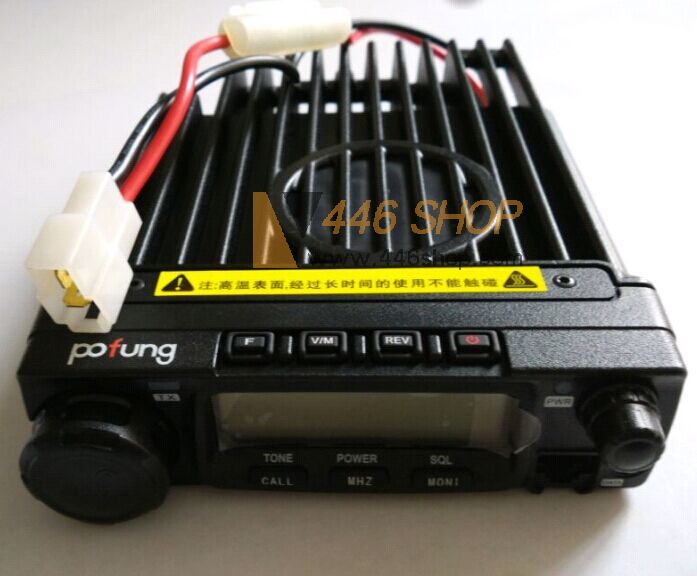

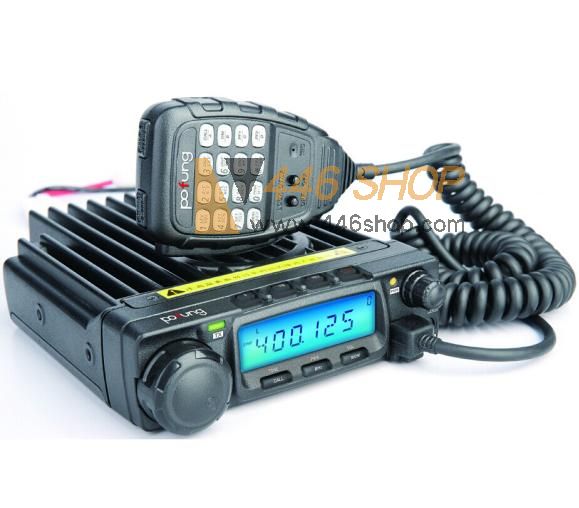

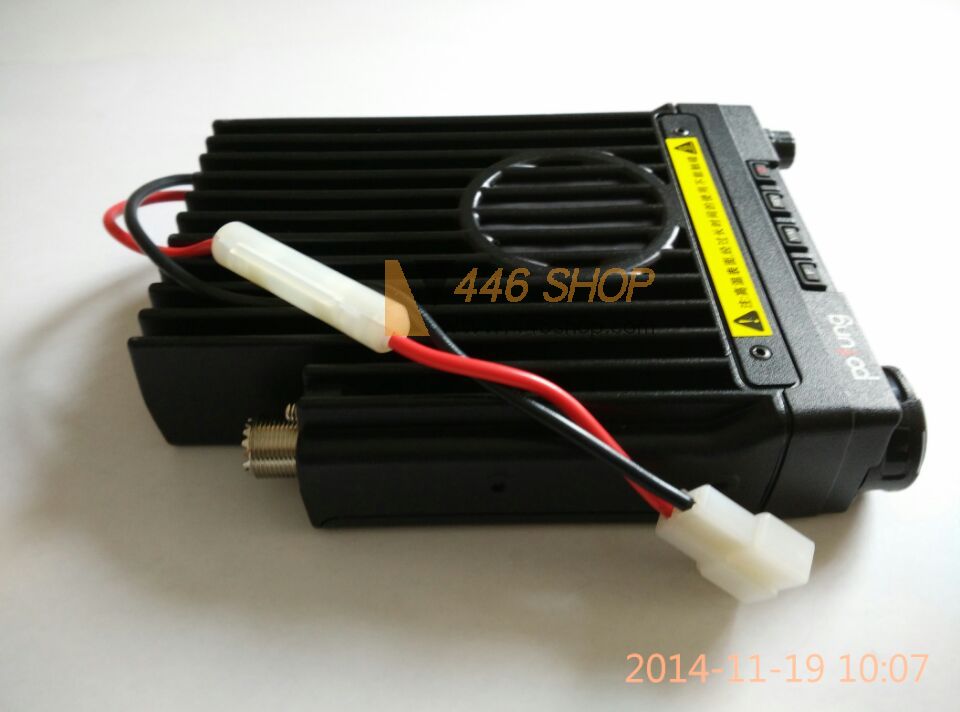

Pofung BF-9500 UHF 400-470MHz Mobile Radio
Feature:
Output:50W/25W/10W
Frequency:400-470MHz
200 Channels(0-199)
Display on a Large LCD with adjustable brightness
Amateur operation mode and Professional operation mode
Programming different CTCSS,DCS,2Tone,5Tone in per channel
Using 5Tone to send message, Emergency alarm, Call all, ANI, Remotely Kill, Remotely waken
Automatic calling identification function by DTMF-ANT or 5Tone-ANT
All of our item are Brand new.
Main Function
Menu setting
Work by repeater station
Auto repeater offset
Remote Kill/stun/activate/revive
Wide/Narrow band setting
Channel name editing
CTCSS/DCS setting and scanning
High/Mid/Low power selectable
Voice compander
Repeater offset shift
DTMF/2Tone/5Tone
Talk around
Monitor function
Squelch function
Volume adjustment
Channel mode/Frequency mode switch
Emergency alarm
Voice prompt
Auto power off
Emergency alarm
COMP function
Scan function
1750MHz tone
ANI-ID
Call keypad
|
Frequency range
|
UHF:400-470MHz
|
|
Channel capacity
|
200ch
|
|
Channel spacing
|
12.5/20/25kHz
|
|
Frequency step
|
2.5/5/6.25/8.33/10/12.5/25/50/100kHz
|
|
Working Voltage
|
13.8V ±15%
|
|
Squelch style
|
CTCSS/DCS/5Tone/2Tone/DTMF
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating temperature
|
-20 °C to +60°C
|
|
Dimension
|
145(W) x 47(H) x 190(D)mm
|
|
Weight
|
Approx:1.2Kg
|
|
Transmission
|
|
Sensitivity(12dB SINAD)
|
<=0.25μV/<=0.35μV
|
|
Adjacent channel selectivity
|
>=70/>=60dB
|
|
Inter modulation
|
>=65dB/>=60dB
|
|
Spurious Rejection
|
>=70dB
|
|
Acoustic frequency response
|
+ 1— -3dB(0.3-2.55k)
|
|
SNR
|
>=45dB/>=40dB
|
|
Audio distortion
|
<=5%
|
|
Audio Output Power
|
>2W@10%
|
|
Receiver
|
|
Modulation mode
|
16k￠F3E/11k￠F3E
|
|
adjacent channel power
|
>=70dB/>=60dB
|
|
SNR
|
>=40dB/>=36dB
|
|
Audio distortion
|
<=5%
|
|
Acoustic frequency response
|
+ 1— -3dB(0.3-2.55k)
|

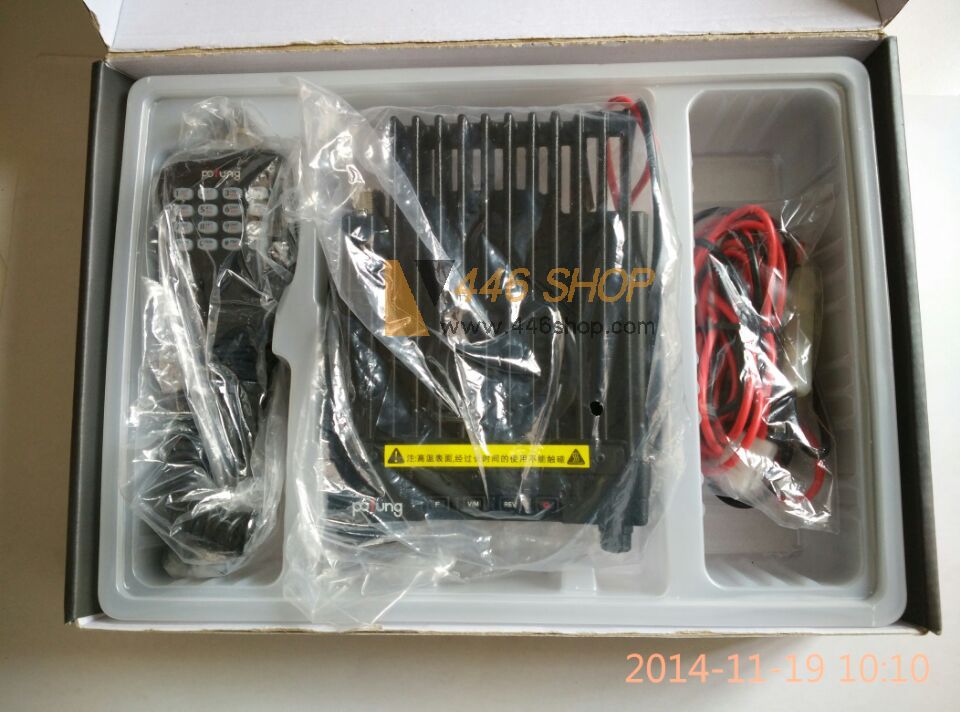

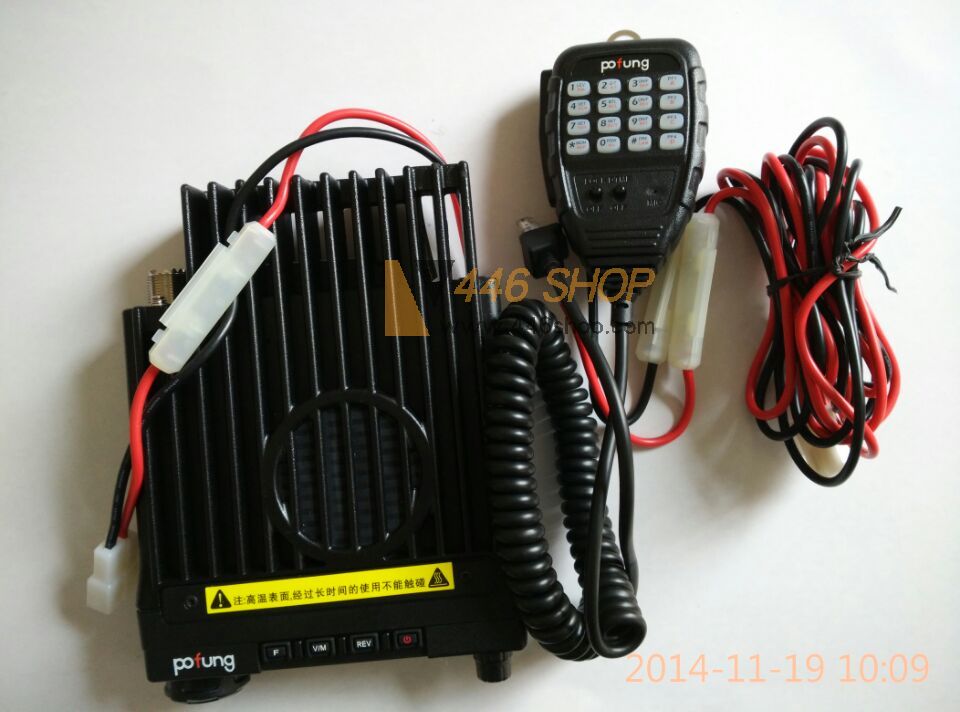

Package Contain:
• 1 x Mobile Radio 9500
• 1 x Keypad DTMF microphone
• 1 x Radio body counting bracket
• 1 x DC power cable
• 1 x Screw pack
• 1 x User manual
Free send 1 x Programming Cable
