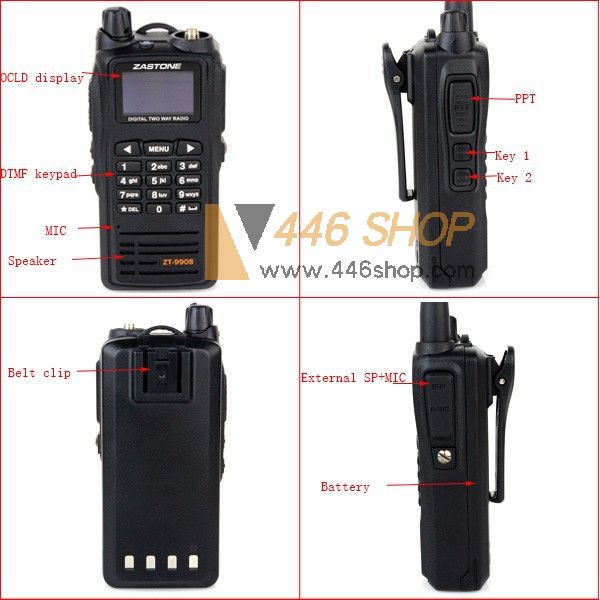

ZASTONE ZT-9908 DIGITAL HANDHELD RADIO
|
Features
|
|
DPMR Digital Standard
Analog ,Digital , both ,Channel Selection
Multi Working modes optional
Aadvanced Organic Electroluminesence Display
UHF430-470MHz
199 storage channel
Single Call ,Selective Call ,Group Call function
Message Edit ,Send and Receive support
ANI ID Function
Time display & setable
CTCSS 50/DCS 104
DTMF Function
Multi Frequency Step Setting
Repeater Offset
Priority Channel Scan
Scanning modes Selection
Channels Name Edit
|
Antenna connector: SMA-Male
Earphone connector: K1
Description:
|
All of our item are brand News
|
|
Model
|
ZT-9908
|
|
Frequency Range
|
430-470MHz
|
|
Channel capacity
|
199
|
|
Output power
|
4 W
|
|
Operating Voltage
|
7.4V
|
|
Antenna Impedance
|
50 ohm
|
|
Channel Spacing
|
Digital 6.25kHz
|
|
Anolog12.5kHz/25kHz
|
|
Working Temperature
|
-20°C—+60°C
|
|
Battery capacity
|
1800 mAh
|
|
Dimension(Exclude antenna)
|
135x60x38 mm
|
|
Weight(Include Battery)
|
253 g
|
|
Feature
|
|
CTCSS/DCS
|
Analog CTCSS 51/Digital CTCSS 107
|
|
Easy Operation by OLED display
|
DPMR digital and analog communication
|
|
Analog wide/narrow :25k/12.5k
|
Yes
|
|
|
1 Emergency channel and cannot be deleted
|
Yes
|
|
|
Voice Encryption
|
Yes
|
|
|
TOT(Time-out timer)
|
Yes
|
|
|
VOX function
|
Yes
|
|
|
Emergency call
|
Yes
|
|
|
Off set
|
Yes
|
|
|
TX/RX CTCSS/DCS adjustable
|
Yes
|
|
|
Scanning: VFO/Channel
|
Yes
|
|
|
Squelch adjustable(0-9)
|
Yes
|
|
|
Backlight on/off
|
Yes
|
|
|
Power save
|
Yes
|
|
|
Monitor
|
Yes
|
|
|
Multi Frequency Step Setting
|
Yes
|
|
|
Lower battery alert
|
Yes
|
|
|
Key lock and keypad tone
|
Yes
|
|
|
DTMF Function
|
Yes
|
|
|
PC soft programming
|
Yes
|
|
|
Manual input frequency
|
Yes
|
|
|
Message send and receive
|
Yes
|
|
|
Single Call ,Selective Call ,Group Call function
|
Yes
|
|
|
Specification
|
|
Output power
|
VHF 4W/ UHF 1W
|
|
Antenna connector
|
SMA-Male
|
|
TX current
|
HI<=1.6A LO<=0.80A
|
|
Modulation
|
FM
|
|
Maximum frequency deviation
|
<=±5kHz or <=±2.5kHz
|
|
Sensitivity
|
<= -12dBm(12dB SINAD)
|
|
Squelch Sensitivity
|
<=0.16µV
|
|
Inter modulation rejection
|
60dB
|
|
Audio power
|
>=500mW
|
|
RX current
|
<=140mA
|
|
Standby
|
15mA
|
Package Include:
1 x Zastone ZT-9908 DPMR Digital Handheld
1 x Antenna
1 x Li-ion battery pack
1 x Charger
1 x Belt clip
1 x Sling
1 x User manual
1 x PTT earpiece
|
