Wouxun KG-UVD1P Dual Band 136-174Mhz 350-470Mhz 105 groups D.C.S/50 groups CTCSS

[Comments(0)|Leave your Comment]

Brand:WOUXUN

Item#:0113000038

Score:1 (Score change Discount Voucher)

Shipping Fee:$20

List Price:

Price:

You Save:

Frequency range：

Dimension：

Qty:

Prev:Wouxun KG-UVD1P Professional VHF UHF Handheld Two-way Radio

Next:FM Transceiver Wouxun KG-UV6D CE/FCC/ROHS/IC/REACH/IP55 approval Wouxun handheld radio dual band walkie-talkie with DTMF encoding function

Detail

Comment

Payment

Shipping

Wouxun KG-UVD1P Professional VHF/UHF Handheld Two-way Radio with Dualband Dual frequency Dual display Dual standby

KG-UVD1P 136-174 / 350-470Mhz (DTMF NEW Version !)

Main Features
.Dual Band
.Dual Frequency, Dual Display and Dual Standby
.VHF&UHF, UHF&UHF or VHF&VHF working modes
.Frequency Range: 136-174MHz & 350-470MHz
. Bright Flashlight Illumination Function
. Voice Prompt (Chinese / English)
. 128 memory channels
. VOX Function
. Digital FM radio (Automatic tuning and storing, radio frequency display)
. High/Low power selection
. Wide/Narrow Bandwidth selection (25KHz/12.5KHz)
. Channel Name edit and display
. 105 groups D.C.S/50 groups CTCSS
. Stopwatch Function
. Low-voltage voice prompt
. Busy Channel Lockout
. Transmit Over Timer
.Step（5K/6.25K/10K/12.5K/25K/50K/100K）
. Keyboard lock (Auto/Manual)
. Multiple scan modes
. Wire clone function
. Programmable by computer

. DTMF

Technical Specification

Frequency range	Frequency range can be suitable for different countries or areas: 136-174/350-470MHz(RX/TX) 136-174/400-480MHz(TX/TX) 136-174/420-520MHz(TX/TX) 136-174/400-470MHz(TX/TX) 136-174/245-250MHz(TX/TX) 136-174/216-280MHz(TX/TX) 136-174/225-226MHz(TX/TX) 144-146/430-440MHz(TX/TX)
Memory Channels	128 Channels
Frequency Stability	±2.5ppm
Operating Temperature	-30°C~+60°C
Waterproof	IP55
Antenna Impedance	50
Dimension	5810538mm
Weight	250g
Transmitter
Frequency stability	±2.5ppm
RF Carrier Power	Within pre-determined value±7.5dB
Max. Frequency Deviation	Channel space: 25KHz ±5KHz Channel space: 12.5KHz ±2.5KHz
Audio Modulation	+3dB(pre-emphasis by 6dB between 0.3-3KHz)
Adjacent channel power	Channel space: 25KHz≥70dB Channel space: 12.5KHz≥60dB
Spurious Radiation	≤30dBm
Inter modulation Attenuation	≥40dB
Modulation Distortion	≤10%
Residual FM	≤-35dB
Residual FM	≤3%
Receiver
Sensitivity(12dB SINAD)	0.16μV
Squelch rejection Sensitivity	≤0.8μV
Squelch Sensitivity	≤0.2μV
Audio output power	500mW
Audio Distortion	≤5%
Audio Response	(300-3000Hz)+1 to -3dB
Co-channel Rejection	≥-8.0dB
Performance of Amplitude Limited	≤3
Adjacent Channel Selection	Channel space: 25KHz≥70dB Channel space: 12.5KHz≥60dB
Inter-modulation	≥65dB
Resistance	≥84dB
Spurious Radiation	9Khz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm

Each set PACKAGE CONTAIN

1 x KG-UVD1P Dual Band 136-174 Mhz / 400-480Mhz .
1 x 7.4V 1400mah Li-ion Battery Pack

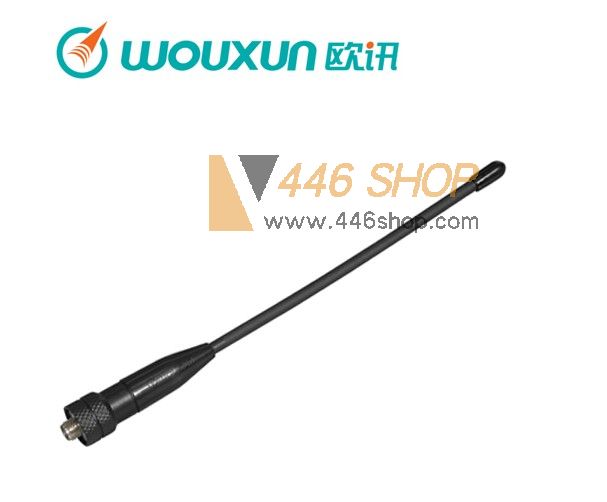

1 x Dual Band Antenna.

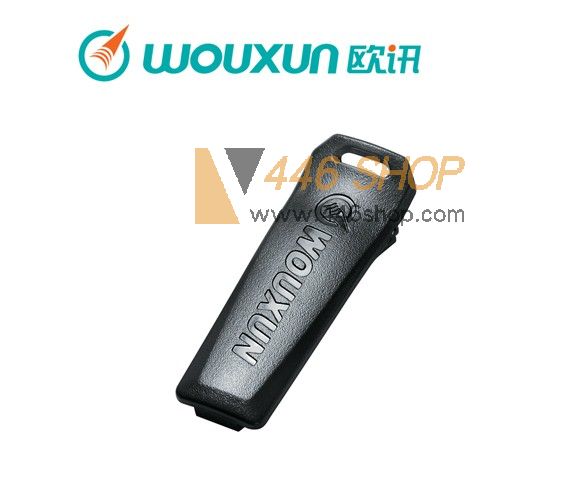

1 x Belt Clip.
1 x ENG Manual
1 x 12 V Car charger Cable cord for desktop charger only This cable not support Battery Eliminator)

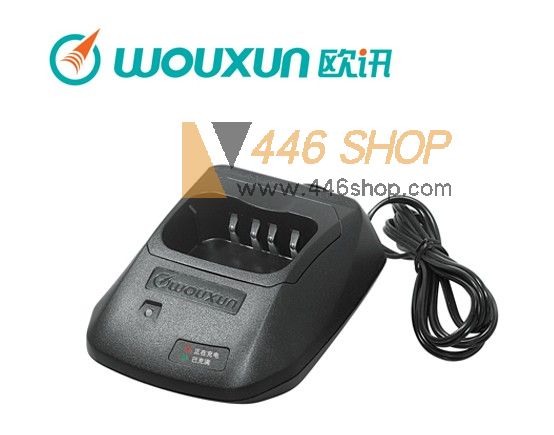

1 x Desktop Charger with 100-240 PSU, fit for your country .
1 x Push to Talk Earpiece
