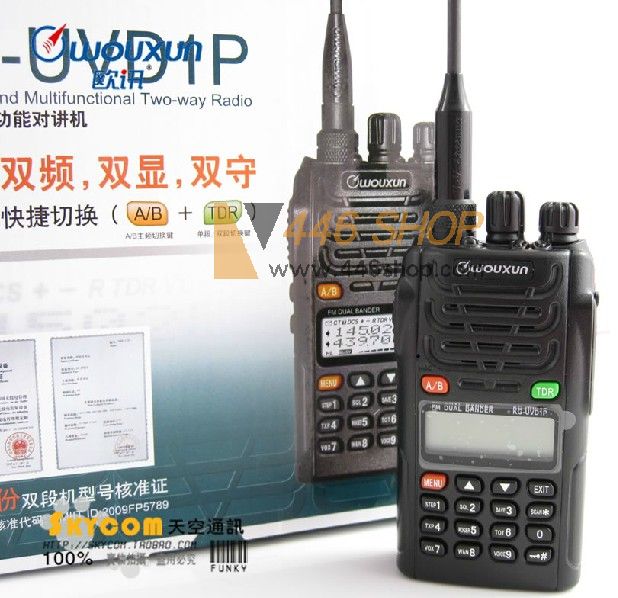

Wouxun KG-UVD1P Professional VHF/UHF Handheld Two-way Radio with Dualband Dual frequency Dual display Dual standby
KG-UVD1P 136-174 / 350-520Mhz (DTMF NEW Version !)
|
Main Features
.Dual Band
.Dual Frequency, Dual Display and Dual Standby
.VHF&UHF, UHF&UHF or VHF&VHF working modes
.Frequency Range: 136-174MHz & 350-520MHz
. Bright Flashlight Illumination Function
. Voice Prompt (Chinese / English)
. 128 memory channels
. VOX Function
. Digital FM radio (Automatic tuning and storing, radio frequency display)
. High/Low power selection
. Wide/Narrow Bandwidth selection (25KHz/12.5KHz)
. Channel Name edit and display
. 105 groups D.C.S/50 groups CTCSS
. Stopwatch Function
. Low-voltage voice prompt
. Busy Channel Lockout
. Transmit Over Timer
.Step（5K/6.25K/10K/12.5K/25K/50K/100K）
. Keyboard lock (Auto/Manual)
. Multiple scan modes
. Wire clone function
. Programmable by computer
|
|
. DTMF
|
Technical Specification
|
Frequency range
|
Frequency range can be suitable for different countries or areas:
136-174/350-470MHz(RX/TX)
136-174/400-480MHz(TX/TX)
136-174/420-520MHz(TX/TX)
136-174/400-470MHz(TX/TX)
136-174/245-250MHz(TX/TX)
136-174/216-280MHz(TX/TX)
136-174/225-226MHz(TX/TX)
144-146/430-440MHz(TX/TX)
|
|
Memory Channels
|
128 Channels
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-30°C~+60°C
|
|
Waterproof
|
IP55
|
|
Antenna Impedance
|
50
|
|
Dimension
|
58*105*38mm
|
|
Weight
|
250g
|
|
Transmitter
|
|
Frequency stability
|
±2.5ppm
|
|
RF Carrier Power
|
Within pre-determined value±7.5dB
|
|
Max. Frequency Deviation
|
Channel space: 25KHz ±5KHz
Channel space: 12.5KHz ±2.5KHz
|
|
Audio Modulation
|
+3dB(pre-emphasis by 6dB between 0.3-3KHz)
|
|
Adjacent channel power
|
Channel space: 25KHz≥70dB
Channel space: 12.5KHz≥60dB
|
|
Spurious Radiation
|
≤30dBm
|
|
Inter modulation Attenuation
|
≥40dB
|
|
Modulation Distortion
|
≤10%
|
|
Residual FM
|
≤-35dB
|
|
Residual FM
|
≤3%
|
|
Receiver
|
|
Sensitivity(12dB SINAD)
|
0.16μV
|
|
Squelch rejection Sensitivity
|
≤0.8μV
|
|
Squelch Sensitivity
|
≤0.2μV
|
|
Audio output power
|
500mW
|
|
Audio Distortion
|
≤5%
|
|
Audio Response
|
(300-3000Hz)+1 to -3dB
|
|
Co-channel Rejection
|
≥-8.0dB
|
|
Performance of Amplitude Limited
|
≤3
|
|
Adjacent Channel Selection
|
Channel space: 25KHz≥70dB
Channel space: 12.5KHz≥60dB
|
|
Inter-modulation
|
≥65dB
|
|
Resistance
|
≥84dB
|
|
Spurious Radiation
|
9Khz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm
|
If bulk order or any questions, please contact Ms. Amy Huang:
Tel: 86(592)5995025
Fax: 86(592)3720556
WhatsApp / IMO / Viber /LINE: 0086 18159282307
WeChat: 0086 13860123881
SKYPE: amy.446shop
Email: amy@446shop.com
|
|
-
1 x KG-UVD1P Dual Band 136-174 Mhz / 400-470Mhz .
-

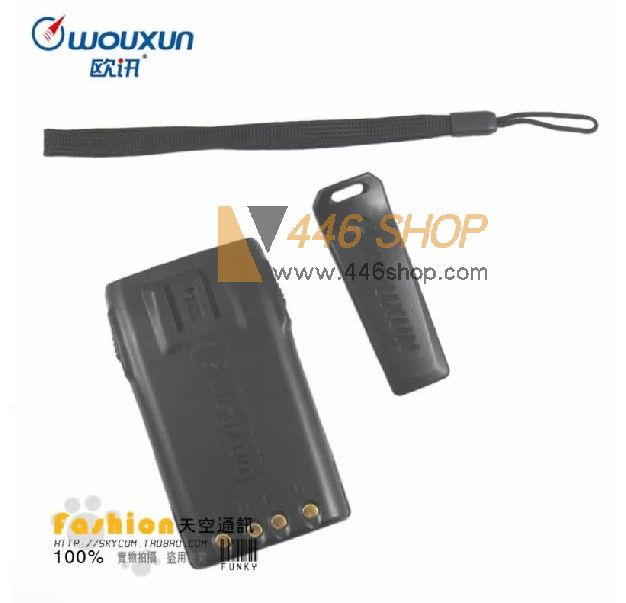

1 x 7.4V 1400mah Li-ion Battery Pack
-
1 x Dual Band Antenna.
-
1 x Belt Clip.
-
1 x ENG Manual
-

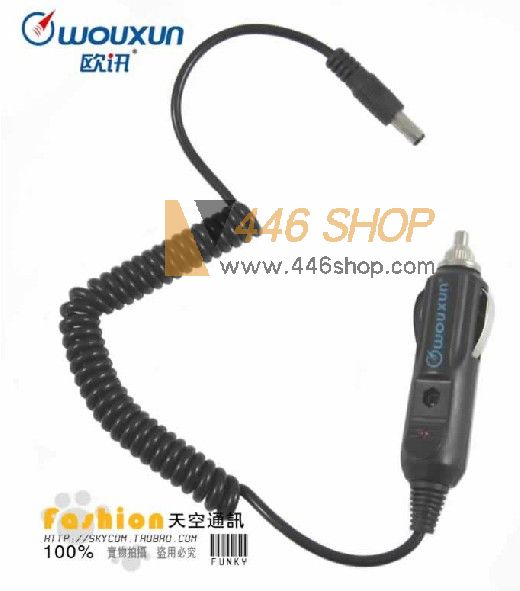

1 x 12 V Car charger Cable cord for desktop charger only This cable not support Battery Eliminator)
-

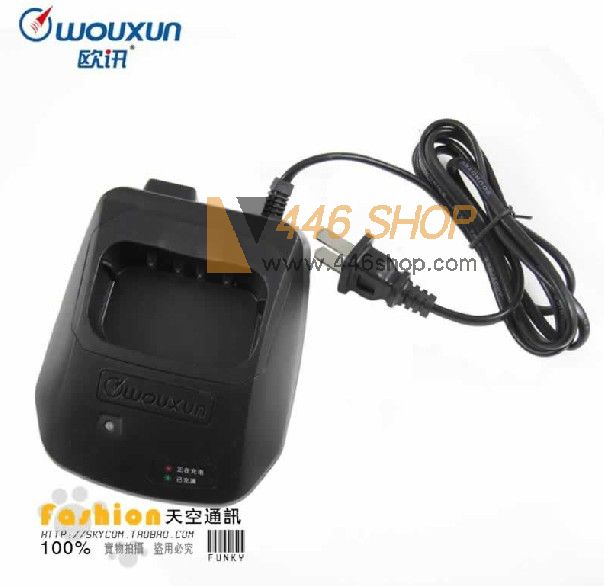

1 x Desktop Charger with 100-240 PSU, fit for your country .
-
1 x Push to Talk Earpiece
|
|
