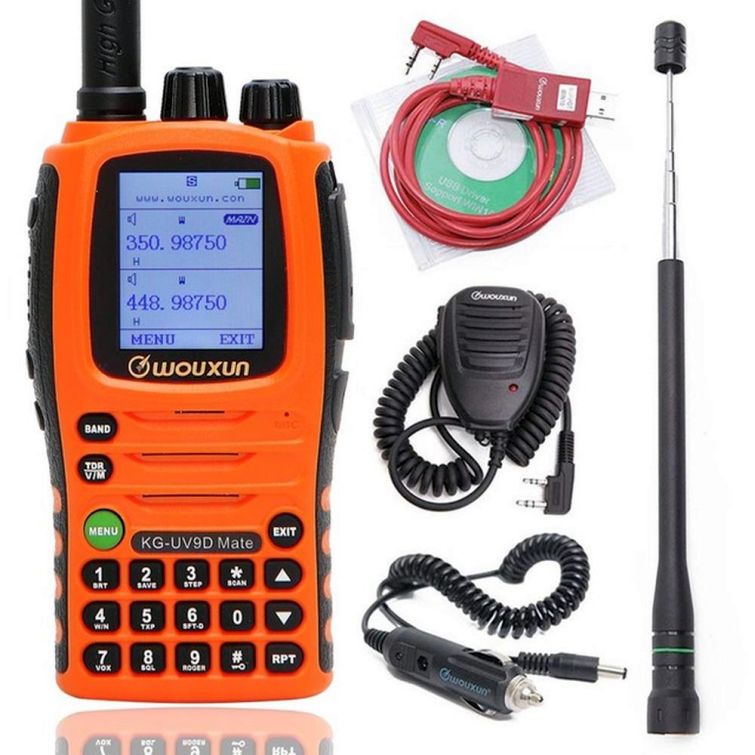

Wouxun KG-UV9D Mate 10W Air Band Walkie Talkie Cross Band Repeater Two Way Radio
Price:

DC 8.4V 100-240V Original Charger for Wouxun KG-UV9D Two Way Radio
Price:

BLC-010 DC 7.4V 3200mAh Li-ion Battery Pack for Wouxun KG-UV9D Plus Two Way Radio
Price:

BLO-006 DC7.4V 1700mAh Li-ion Battery for WOUXUN KG-816 KG-818 KG-819 KG-869 KG-889 Two-way Radio
Price:

Wouxun KG-968 Bluetooth Walkie Talkie Long Talk Range IP 66 waterproof Portable Two Way Radio
Price:

More>>

Home >> Brand of Radio >> WOUXUN >> WOUXUN >> KG-UVD1P Professional Handheld Two-way Radio with Dualband Dual frequency Dual display Dual standby

KG-UVD1P Professional Handheld Two-way Radio with Dualband Dual frequency Dual display Dual standby

[Comments(0)|Leave your Comment]

Brand:WOUXUN

Item#:0113000036

Score:0 (Score change Discount Voucher)

Shipping Fee:$16

List Price:

Price:

You Save:

Frequency range：

Dimension：

Qty:

Prev:Wouxun KG-UVD1P Professional VHF UHF Handheld Two-way Radio

Next:FM Transceiver Wouxun KG-UV6D CE/FCC/ROHS/IC/REACH/IP55 approval Wouxun handheld radio dual band walkie-talkie with DTMF encoding function

Detail

Comment

Payment

Shipping

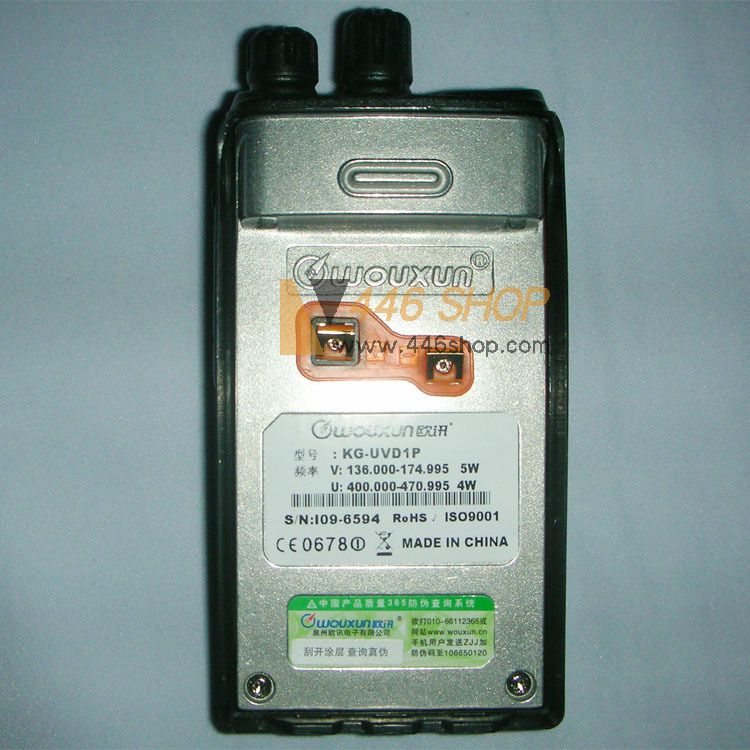

Wouxun KG-UVD1P Professional 136-174 / 350-520 Handheld Two-way Radio with Dualband Dual frequency Dual display Dual standby

KG-UVD1P (DTMF NEW Version !) 136-174Mhz / 350-520Mhz

Main Features
.Dual Band
.Dual Frequency, Dual Display and Dual Standby
.VHF&UHF, UHF&UHF or VHF&VHF working modes ( 136-174Mhz / 350-520Mhz)
.Frequency Range: 136-174MHz & 350-520MHz
. Bright Flashlight Illumination Function
. Voice Prompt (Chinese / English)
. 128 memory channels
. VOX Function
. Digital FM radio (Automatic tuning and storing, radio frequency display)
. High/Low power selection
. Wide/Narrow Bandwidth selection (25KHz/12.5KHz)
. Channel Name edit and display
. 105 groups D.C.S/50 groups CTCSS
. Stopwatch Function
. Low-voltage voice prompt
. Busy Channel Lockout
. Transmit Over Timer
.Step（5K/6.25K/10K/12.5K/25K/50K/100K）
. Keyboard lock (Auto/Manual)
. Multiple scan modes
. Wire clone function
. Programmable by computer

. DTMF

Technical Specification

Frequency range	136-174/350-520MHz(TX/TX)
Memory Channels	128 Channels
Frequency Stability	±2.5ppm
Operating Temperature	-30°C~+60°C
Waterproof	IP55
Antenna Impedance	50
Dimension	5810538mm
Weight	250g
Transmitter
Frequency stability	±2.5ppm
RF Carrier Power	Within pre-determined value±7.5dB
Max. Frequency Deviation	Channel space: 25KHz ±5KHz Channel space: 12.5KHz ±2.5KHz
Audio Modulation	+3dB(pre-emphasis by 6dB between 0.3-3KHz)
Adjacent channel power	Channel space: 25KHz≥70dB Channel space: 12.5KHz≥60dB
Spurious Radiation	≤30dBm
Inter modulation Attenuation	≥40dB
Modulation Distortion	≤10%
Residual FM	≤-35dB
Residual FM	≤3%
Receiver
Sensitivity(12dB SINAD)	0.16μV
Squelch rejection Sensitivity	≤0.8μV
Squelch Sensitivity	≤0.2μV
Audio output power	500mW
Audio Distortion	≤5%
Audio Response	(300-3000Hz)+1 to -3dB
Co-channel Rejection	≥-8.0dB
Performance of Amplitude Limited	≤3
Adjacent Channel Selection	Channel space: 25KHz≥70dB Channel space: 12.5KHz≥60dB
Inter-modulation	≥65dB
Resistance	≥84dB
Spurious Radiation	9Khz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm

If bulk order or any questions, please contact Ms. Amy Huang:

Tel: 86(592)5995025

Fax: 86(592)3720556

WhatsApp / IMO / Viber /LINE: 0086 18159282307

WeChat: 0086 13860123881

SKYPE: amy.446shop

Email: amy@446shop.com

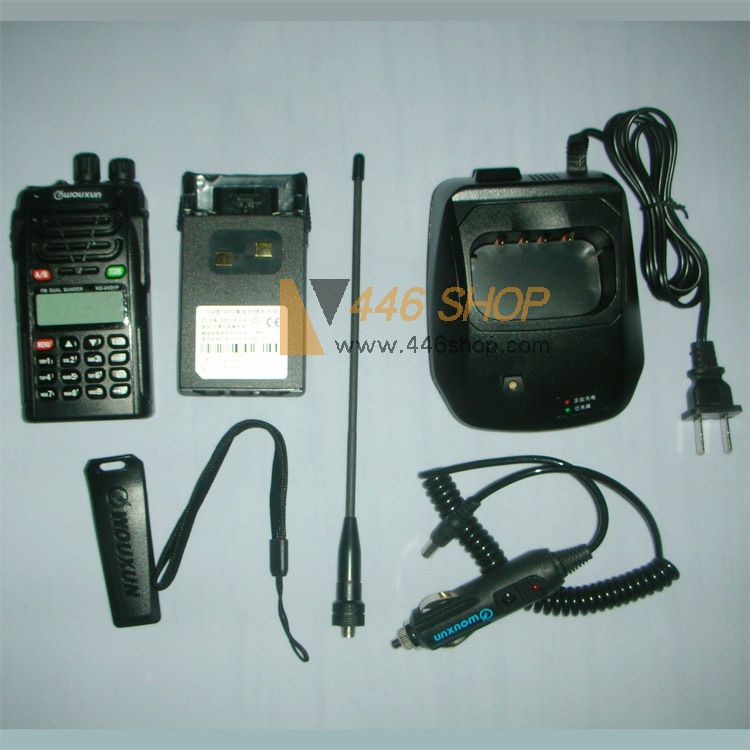

Each set PACKAGE CONTAIN

1 x KG-UVD1P Dual Band Radio
1 x 7.4V 1400mah Li-ion Battery Pack
2 x Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x 12 V Car charger Cable cord for desktop charger only This cable not support Battery Eliminator)
1 x Desktop Charger with 100-240 PSU, fit for your country .
1 x Push to Talk Earpiece
