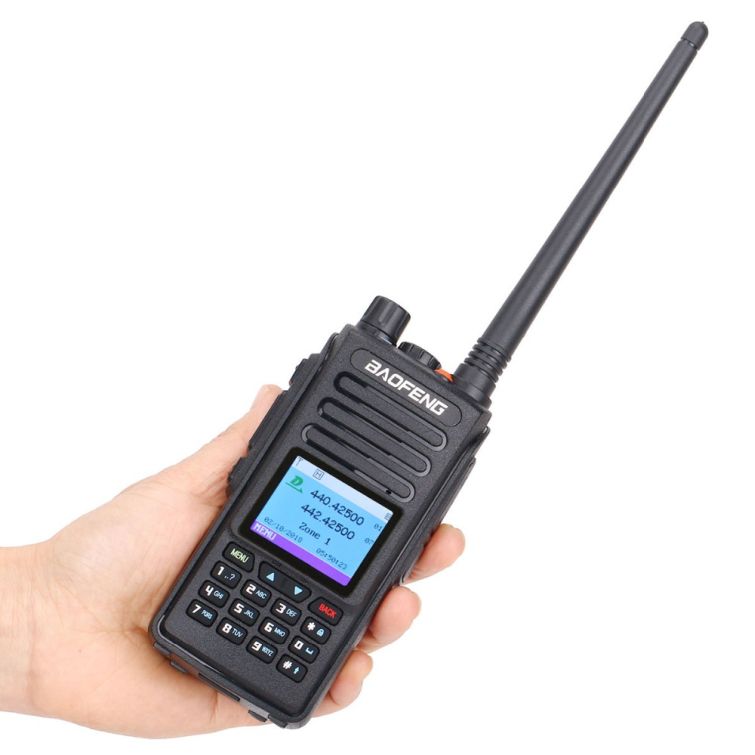

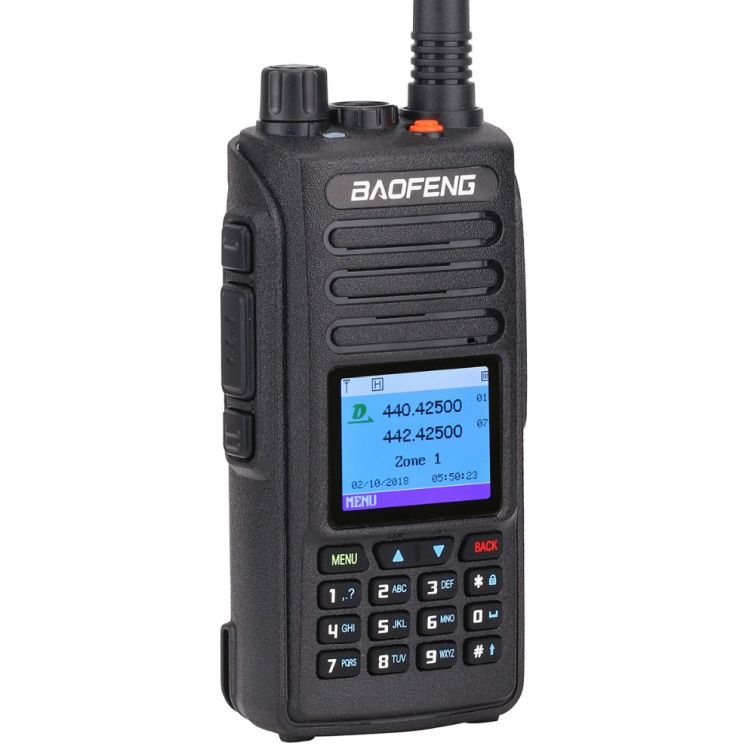

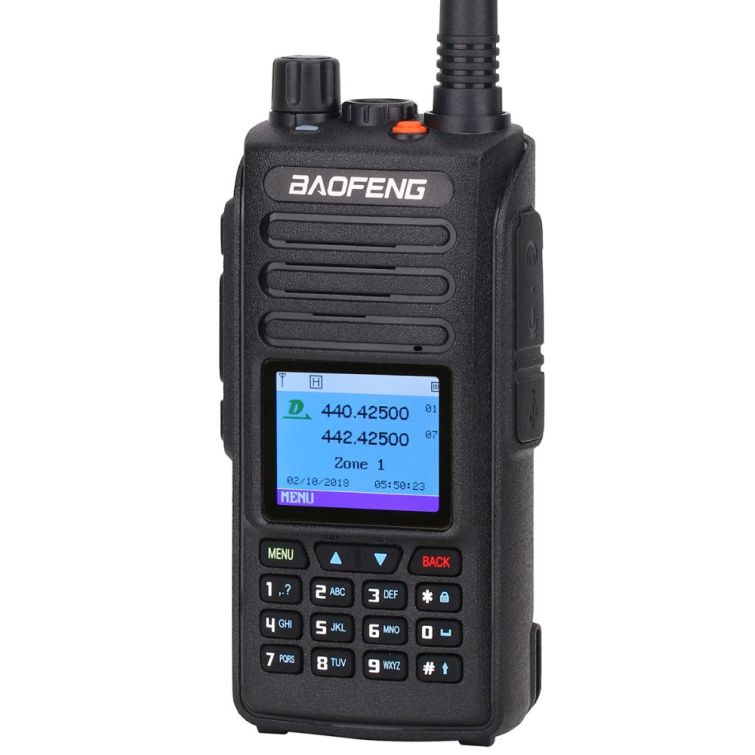

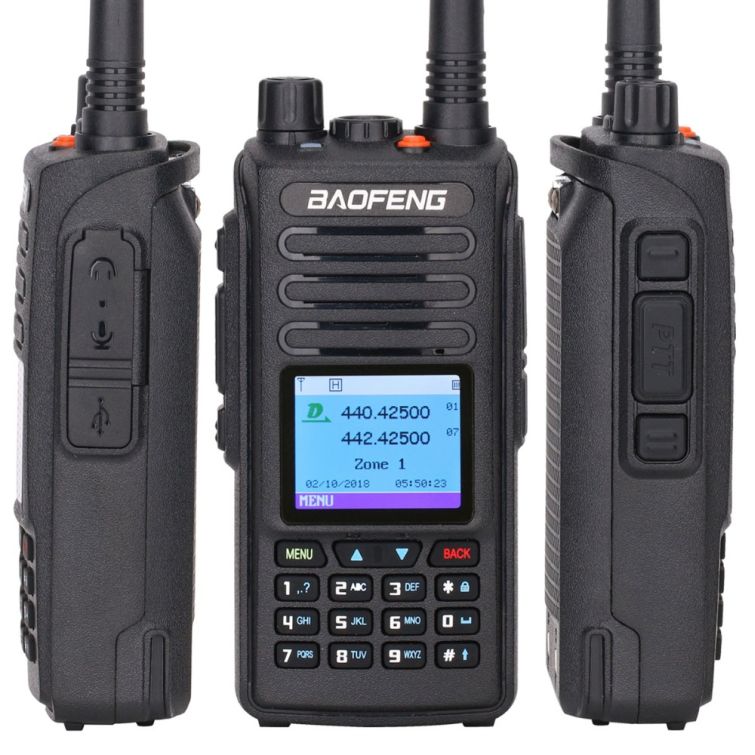

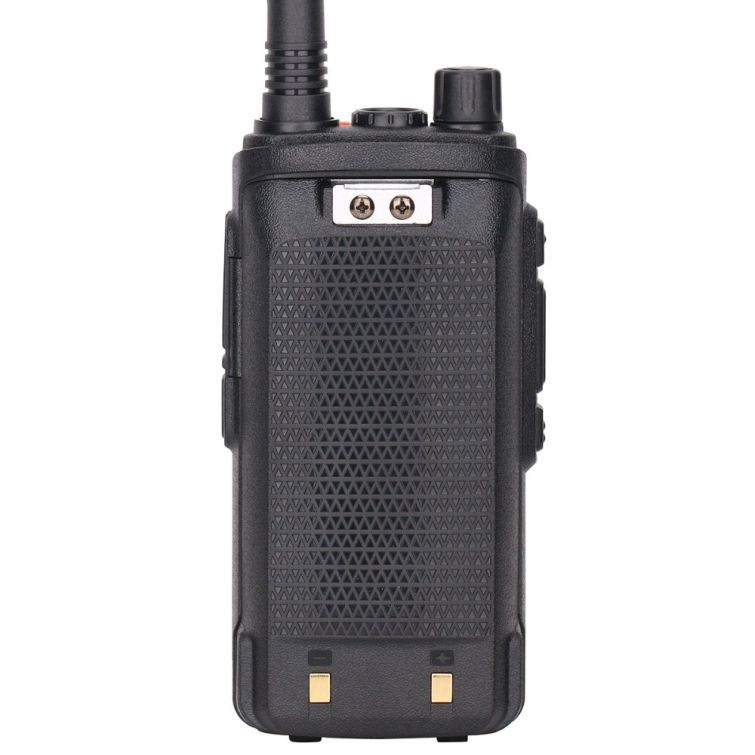

Baofeng DMR DM-1702 Digital Walkie Talkie VHF UHF Dual Band 136-174 & 400-470MHz Two Way Radio

[Comments(0)|Leave your Comment]

Brand:BAOFENG

Item#:0101063376

Score:0 (Score change Discount Voucher)

Shipping Fee:$15

List Price:

Price:

You Save:

Frequency Range：

Color：

Qty:

Prev:ICOM IC-M330G VHF Marine Radio GPS Waterproof Marine Transceiver

Next:Yaesu FT-2980R VHF 136-174MHz Mobile Radio 80Watt Heavy-Duty FM Transceiver

Detail

Comment

Payment

Shipping

Baofeng DM-1702 GPS DMR Walkie Talkie VHF UHF Dual Band Digital Two Way Radio

Baofeng DMR DM-1702 Walkie Talkie VHF UHF Dual Band 136-174 & 400-470MHz Dual Time Slot Tier 1&2 Digital/Analog Radio

Features:

1. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly

2. Dual Band VHF 137-174MHz & UHF 400-470MHz

3. Voice Record function (optional): Built-in 1G memory card to record TX & RX voice continuously for 9 hours

4. Frequency/Channel Mode Selectable

5. Analogue & Digital Mode

6.1024 Storage Channel

7. Dual Time Slot, Tier I &II

8. Group Call/Private call

9. Dual Display

10. VOX Function

11. Frequency Step:2.5/5/6.25/10/12.5/20/25/k

12. Scan

13. 16 groups color code seletable

14. 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack

15. SMS message

16. Support manually programming and PC programming

17. High/Medium/Low Power seletable

Specifications:

General
Frequency Range	VHF:136-174MHz, UHF:400-470MHz (Dual Band)
Memory Channel	1024
Operating Voltage	DC 7.4V
Frequency stability	±1.0ppm
Demission	1366236mm (no including the antenna)
Operating environment	-30℃-+60℃
Weight	Approach.274g(including the battery and antenna)
Transmitter
Output power	High:5W Low:1W
Adjacent channel power	≤65dB ≤60dB
Output consumption	Analog≤1.6A Digital≤0.9A
Audio response	+1~3dB
Standby current consumption	≤0.18A
Digital Protocol	ETSI-TS102 361-1,-2,-3
Modulation distortion	≤5%
Vocoder type	AMBE+2 TM
FM/FM modulation:	16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz
4FSK/4FSK digital modulation	12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE
Signal-to-noise(wide/narrow)	≥45dB,25KHz ≥40dB,12.5KHz
Antenna Port Spurious	9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm
Receiver
Analog receive sensitivity	-122dBm (12dB SINAD)
Digital receive sensitivity	-122dBm (BER≤5%)
Audio power	1W
Audio distortion	<10%
Signal imitation	≥70dB
Audio response	+1~3dB
Receive current	≤380mA
Intermediation(wide/narrow)	≥62dB/≥58dB
Adjacent channel selectivity	≥65dB/≥60dB
PM noise	≥45dB,25KHz / ≥40dB,12.5KHz

Package Contain:

1× BAOFENG DM-1702 DMR

1× 2200mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual
