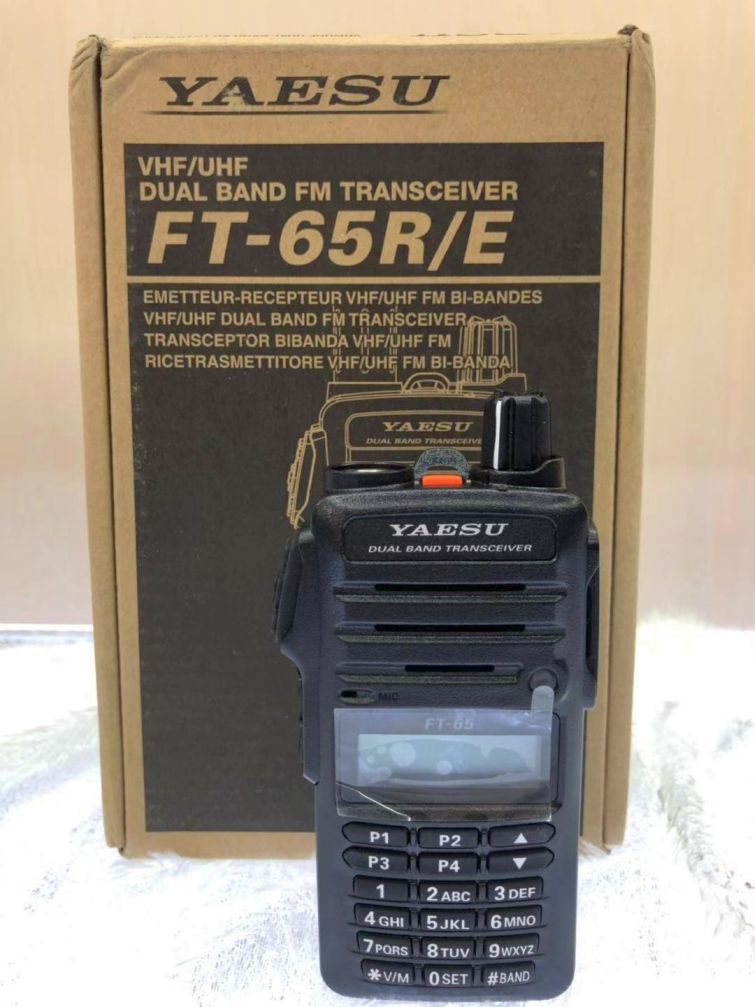

Yaesu FT-65R VHF UHF 2 Meter 70cm Dual Band Handheld Two Way Radio FM Transceiver
YAESU FT-65R Dual Band VHF136-174 / UHF400-480MHz FM Ham Two-Way Radio
Transceiver
The FT-65R is a very compact, ruggedly constructed Handheld VHF/UHF with
three selectable power settings 5W / 2.5W / 0.5W allowing each user to select
the power they need. The big front speaker provides a full 1 watt of crisp,
clear audio quality. The unit comes supplied with a 1950mAh Li-ion battery pack
capable of over 9 hours of operation, with an optional higher capacity 2500mAh
Li-ion battery for over 11.5 hours of operating time. A 3.5 hour rapid charger
comes standard, making the transceiver ready to operate at any time. Our newly
designed large white LED displays are vibrant and highly visible. Four Quick
Recall Keys (QRK) are user programmable to instantly recall favorite channels
with just the push of a button. VOX operation is available with the optional
Earpiece Microphone SSM-512B. Other useful features included: versatile
scanning capabilities such as Programmable VFO Scan, Memory Scan, Priority
Channel Scan, and Weather Alert Scan, WX Channels with 'Severe
Weather' Alert, PC Programming, Transceiver-to-Transceiver Cloning, FM Broadcast
Receiver, Automatic Range Transponder System (ARTS), CTCSS/ DCS Operation, Busy
Channel Lockout (BLCO), Automatic Power Off feature, and Transmitter Time Out
Timer (TOT).
FEATURES:
Commercial Grade VHF / UHF
The FT-65R is built to commercial grade standards, including the IP54
Rating for Dust and Water protection, and the MIL-810-C,D and E standards
making this radio suitable for operation in the harshest of environments.
Powerful Outputs
With 5 Watts of reliable RF output power this radio is sure to be heard.
Never miss a call with One watt of Crisp, Clear Audio output from the oversized
front panel speaker.
High Capacity Li-Ion battery
Packaged with a powerful 1950 mAh Li-Ion battery pack, giving the radio
over 9 hours of operating time, or upgrade to the optional High-Capacity 2500
mAh Li-Ion battery pack for over 11.5 hours of extended operating time. To
ensure minimal down time the FT-65R also comes packaged with a 3.5-Hour Rapid
charger.
QRK (Quick Recall Key)
Four Dedicated User programmable Keys serve as short cut keys to
preferred menu options, or use the four dedicated recall keys to quickly and
easily store and recall desired frequencies.
Versatile Scanning Capabilities
Programmable VFO Scan scans all channels in the desired frequency range,
Memory scan allows scanning of user selectable frequencies, Priority Channel
Scan can be used to scan memory channels while making one channel a priority.
Weather Alert scan alerts the user when severe weather is approaching.
PC Programmable
The FT-65R is capable of being programmed directly from a PC making all
of the advanced setup features a breeze using the optional software and SCU-35
programming cable.
More Advanced features
Tons of advanced features are loaded into this compact radio including:
Transceiver to Transceiver cloning with the optional SCU-36 clone cable, FM
Band receiver equipped, ARTS (Automatic Range Transponder System), DTMF
operation, CTCSS/DCS operation, TOT (time out timer) and more.
FT-65R
FM handheld walkie-talkie
Commercial
dual-band handheld radio
-
Meets IP54 Rating (Dust / Waterproof), American Standard MIL-810-C, D & E
-
Compact body providing 5W of reliable RF power
-
The front 36mm speaker provides powerful and clear audio output
-
Support manual and computer write frequency
-
More than 9 hours of operation time
The
main function:
-
VHF / UHF commercial two-stage handheld radio
- Compact design, dimensions 52.5 x 104.5 x 31
mm wide
- Reinforced construction; Meets IP54 class
(Dust / Waterproof), American Standard MIL-810-C, D & E
- The front 36mm speaker provides powerful and
clear audio output
-
Compact body providing 5W of reliable RF power
- Three selectable transmit power settings (5
W (high) / 2.5 W (medium) / 0.5 W (low)
- The included 1950 mAh Li-Ion battery pack
provides more than 9 hours of operation * 1
- High Capacity 2500 mAh Li-Ion Battery Pack
(SBR-26LI) with Optional Accessories Provides Expanded Operation Time of Over
11.5 Hours
-
Includes 3.5 hour fast charger (SBH-22) (using SBR-25LI)
- QRK (Shortcut Key): Four user-programmable
keys to quickly set your favorite features
- Large white LED signal light, alarm and
quick return to main channel for emergency signal
-
Multi-function scanning function: VFO setting scan, memory scan, priority
channel scan, weather alarm scan
- Weather Channel 'Bad Weather'
Alert (US Version)
-
Optional VOX headset microphone provides VOX operation (SSM-512B)
- Computer write frequency via optional write
cable (SCU-35)
- Machine-to-machine clone replication with an
optional copy line (SCU-36)
- FM
radio receiver
- ARTS (Automatic Positioning Response System)
-
DTMF settings
-
CTCSS / DCS settings
- Busy channel lock (BCLO)
-
Power saver function
- Automatic shutdown function (APO)
- Transmit timeout limit (TOT)
* 1
(transmission) 6 seconds: (reception) 6 seconds:: (standby) 48-second cycle
Each
Package Contain:
FT-65R
Dual Band Transceiver
Antenna
7.4V
1,950 mAh Lithium Battery Pack (SBR-25LI)
Quick
Charger (SBH-22)
AC
Adapter (SAD-20B)
Strap
clip (SHB-18)
User's
Guide
|
