  Home >> Brand of Radio >> Kydera >> Kydera >> Kydera DR-8500UV Dual Band DMR Walkie Talkie Portable Two Way Radio

Kydera DR-8500UV Dual Band DMR Walkie Talkie Portable Two Way Radio [Comments(0)|Leave your Comment]
Brand:Kydera
Item#:0135571950
Score:0  (Score change Discount Voucher)
Shipping Fee:$19
List Price:
Price:
You Save:
Frequency Range:
Color:
Qty:

Prev:Baofeng UV-5RIII Tri-band VHF 220Mhz UHF Wakie Talkie Handheld Two Way Radio

Next:Kydera DR-880UV GPS Dual Band DMR Walkie Talkie Handheld Digital Two Way Radio

Detail

Related

Comment

Payment

Shipping

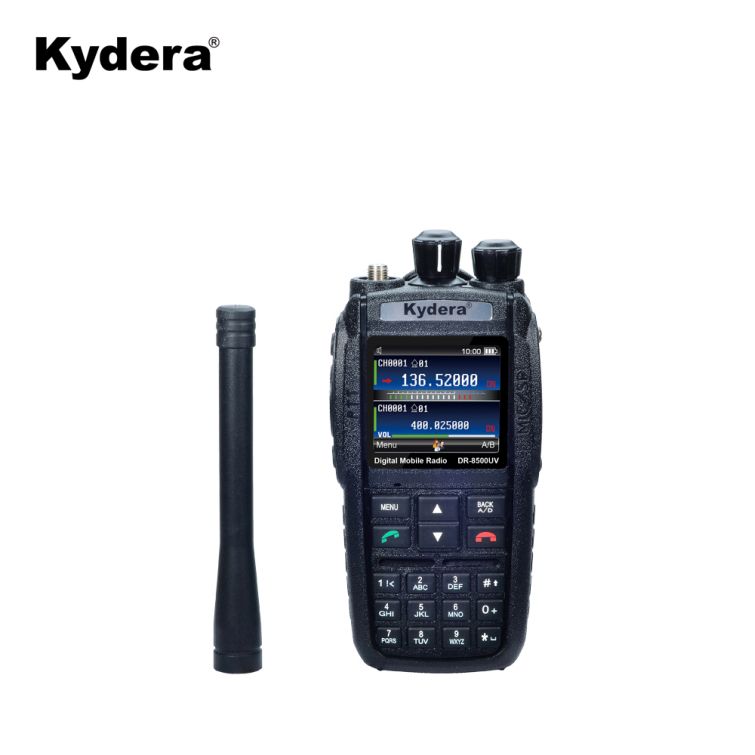

Kydera DR-8500UV Dual Band UHF VHF DMR Walkie Talkie Portable Two Way Radio

Dual band UHF VHF DMR walkie talkie DR-8500UV portable two way radio
1.Compatible with Motorola's DMR.
2.Group Calling,General Calling,Individual Calling.
3.GPS(optional)
4.Li-ion Battery
5.4000Channels
6. uhf vhf radio talki walki
7.Call Alert
8.2 way radio manufacturers
9.best handheld ham radio

New
1. More channel capacity: 4000 channels, 250channels per Zone,  but  if you prefer 16channels per Zone, it is no problem.
2. True 2-time slot: which allows for 2 talk path on 1 frequency


Main Features:
FM Radio
Backlight Control
Keylock
TOT
Scan
High/Low Power
Language Selection
Keytone Control
Low Power Alert
Display Mode
Man Down (Optional)

Digital Features
Message
Remote Kill
Remote Revive
Private Call
Group Call
General Call
Contacts
No-address Call
Remote detection
Call Alert
Call log
Emergency Alarm
Voice Encryption
GPS(Optional)

Analog features
CTCSS
DCS
Squelch Setting
Busy Channel Lockout
Narrow/Wide Band
Scrambler (Optional)
Compandor(Optional)

General Specification of dmr walky talky

Function characteristics:
Ø Individual Calling
Ø Group Calling
Ø General Calling
Ø Stun
Ø Recents
Ø Contacts
Ø GPS Status(optional)
Ø SMS
Ø Remote monitor (optional)
Ø Scan

Technical performance:

Ø Menu Mode
Ø Keypad
Ø 107 DCS
Ø 50 CTCSS
Ø LCD Display
Ø PC Programmable
Ø Priority Scan
Ø Channel Naming
Ø Li-ion Battery Pack
Ø Busy Channel Lockout
Ø Multiple Call Tones+1750Hz
Ø Hi/Low Power
Ø Time-out Timer
Ø Low Battery Alert
Ø Frequency/Channel Scan
Ø Battery Strength Indicator
Ø Selectable Squelch Level
Ø CO/TO/SE Scan Switchable
Ø Programmable Greeting Message
Ø Selectable Name/Frequency Display Mode

General

Frequency

136-174Mhz & 400-480Mhz or other specified frequency (customized)

Channel

4000 channels (250channels per zone, 16 zones)

Channel spacing

12.5/25KHz

Power

4/5W

Antenna impedance

50Ω

Dimension (H*W*D)

111mm x 58mm x 38mm

Weight (with battery)

225g

Li-Pol battery

2300mAH

Rated voltage

DC: 7.4V

Receiver

Frequency stability (-20, +60, +25)

+/-1.5ppm

Analogue sensitivity

0.3uV/0.25uV

Digital sensitivity (5%BER)

0.25uV/0.2uV)

Inter-modulation

65dB

Adjacent channel selectivity

60dB@12.5kHz/65dB@25kHz

Spurious rejection

65dB

Rated audio

500mw

Audio distortion @rated audio

3%

FM hum & noise

-40dB@12.5kHz/-45dB@25kHz

Audio response

+1,-3dBm

Conducted /radiated emission

-57dBm

Transmitter

Frequency stability (-30, +60, +25)

+/-1.5ppm

Modulation restriction

±2.5dB@12.5kHz/±5.0dB@25kHz

FM hum & noise

-40dB@12.5kHz/-45dB@25kHz

Conducted /radiated emission

-36dBm<1GHz/-30dBm>1GHz

Adjacent channel selectivity

-60dB@12.5kHz/-65dB@25kHz

Audio response

+1,-3dBm

Audio distortion

3%

FM modulation

12.5kHz: 11KOF3E
25kHz: 16KOF3E

4FSK digital modulation

12.5kHz data: 7K60F1D and 7K60FXD
12.5kHz audio: 7K60F1E and 7K60FXE
12.5kHz data and audio: 7K60F1W

Digital vocoder

AMBE+2™

Digital agreement

ETSI-TS102 361-1,-2,-3

Each Unit Package Contain:

1 x Kydera DR-8500UV Dual Band DMR transceiver

1 x Battery 2300mAh Li-ion

1 x Charger Docking

1 x Charger Adaptor (for your country)

1 x High Gain Dual Band Antenna

1 x Belt Clip

1 x Sling

1 x PTT Earpiece
