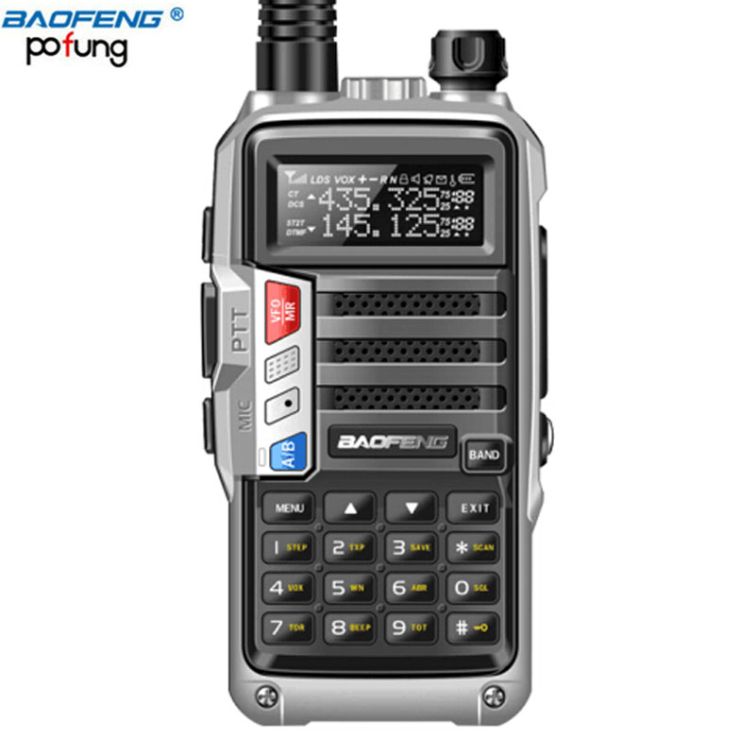

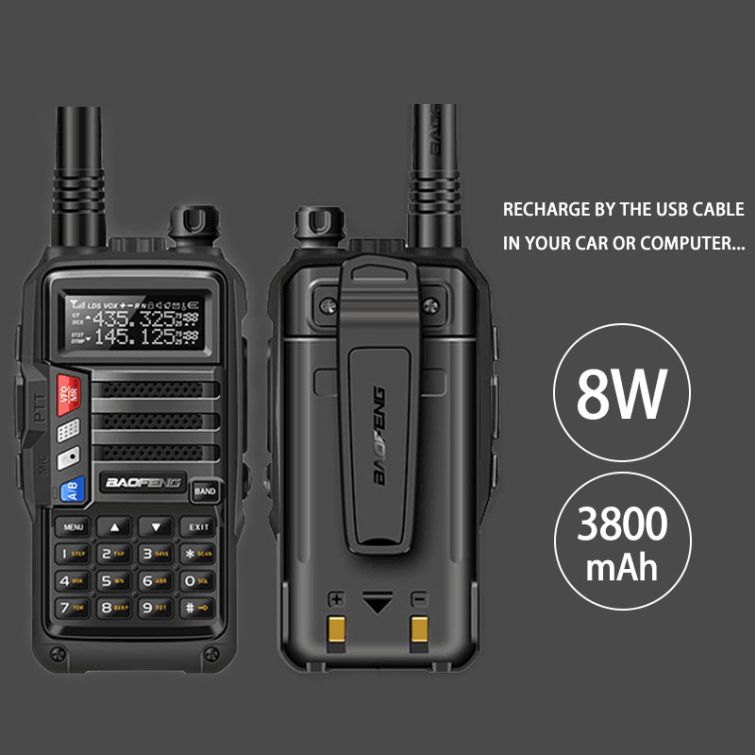

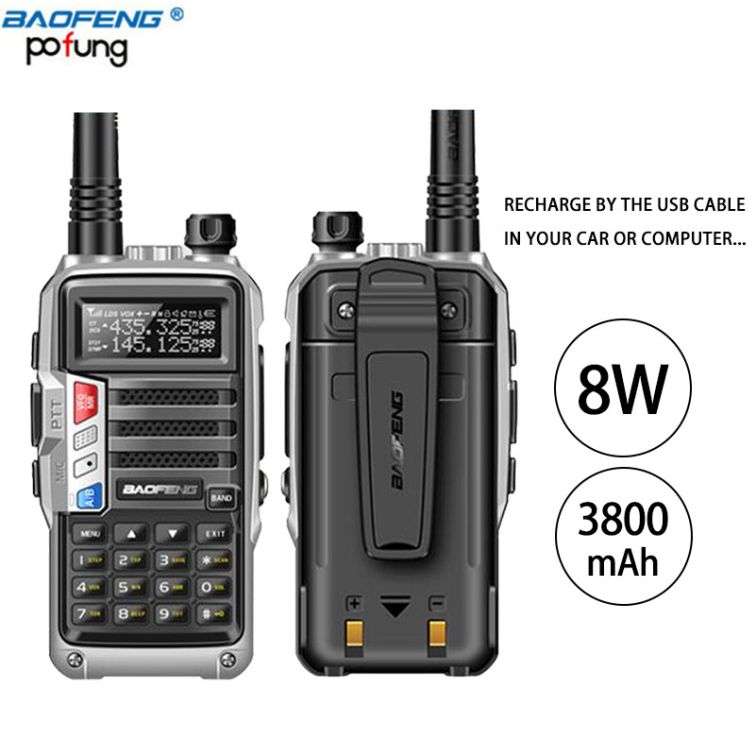

Baofeng AS53 Thicken Battery 3800 mAh 8W
Long Range 10KM Dual Band Portable Radio
2018 NEW ARRIVAL Baofeng AS53 is a powerful radio. with optional methods to charge the battery.
But the standard does not include the USB cable and car charger cable.
If you want to buy the related accessories, you can buy it by the above information.
Feature:
1. 100% Brand New & Never Used
2. Dual-band handheld transceiver with
display function menu on the display “LCD”
3. DTMF encoded
4. Lithium-ion battery with high capacity
5. Commercial FM radio receiver
(65MHz~108MHz)
6. Incorporates 105 codes “DCS” and 50privacy
codes “CTCSS” programmable
7. Function “VOX”(voice operated
transmission)
8. Alarm function
9. Up to 128 memory channels
10. Broadband (Wide)/Narrowband (Narrow),
selectable
11. High/low power selectable
12. Display illumination and programmable keyboard
13. Function “beep” on the keyboard
14. Dual Watch/dual reception
15. Selectable Frequency Step
16. Function “OFFSET” (frequency offset for
repeater access)
17. Battery saving function
18. Timer transmission “TOT” programmable
19. Selecting the Scan Mode
20. Busy Channel Lock
21. Built-in RX CTCSS/DCS scan
22. Built-in LED flashlight
23. Programmable by PC
24. Level Threshold “Squelch” adjustable from
0 to 9
25. Cross band reception
26. Tone end of transmission
27. Built-in key lock
Specification:
General
|
Frequency range
|
VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)
|
Memory channels
|
Up to 128 channels
|
Frequency stability
|
2.5ppm
|
Frequency step
|
2.5/5/6.25/10/12.5/25KHz
|
Antenna impedance
|
50 OHM
|
Operating temperature
|
-20°C-60°C
|
Supply voltage
|
Rechargeable Lithium-Ion 7.4V
|
Battery Capacity
|
2800mAh
|
Consumption in standby
|
<=75mA
|
Consumption in reception
|
380mA
|
Consumption in transmission
|
<=1.4A
|
Mode of operation
|
Simplex or semi-duplex
|
Dimensions
|
110x58x32mm
|
Weight
|
130g(approximate)
|
Transmitter
|
RF power
|
8W/1W
|
Modulation type
|
FM
|
Emission class
|
16K øF3E/11KøF3E(W/N)
|
|
Maximum deviation
|
<=±5KHz/<=±2.5KHz(W/N)
|
|
Spurious emission
|
<-60dB
|
|
Receiver
|
|
Receiver sensitivity
|
0.2µV (at 12 dB SINAD)
|
|
Inter modulation
|
60dB
|
|
Audio output
|
1000mW
|
|
Adjacent channel selectivity
|
65/60dB
|
|

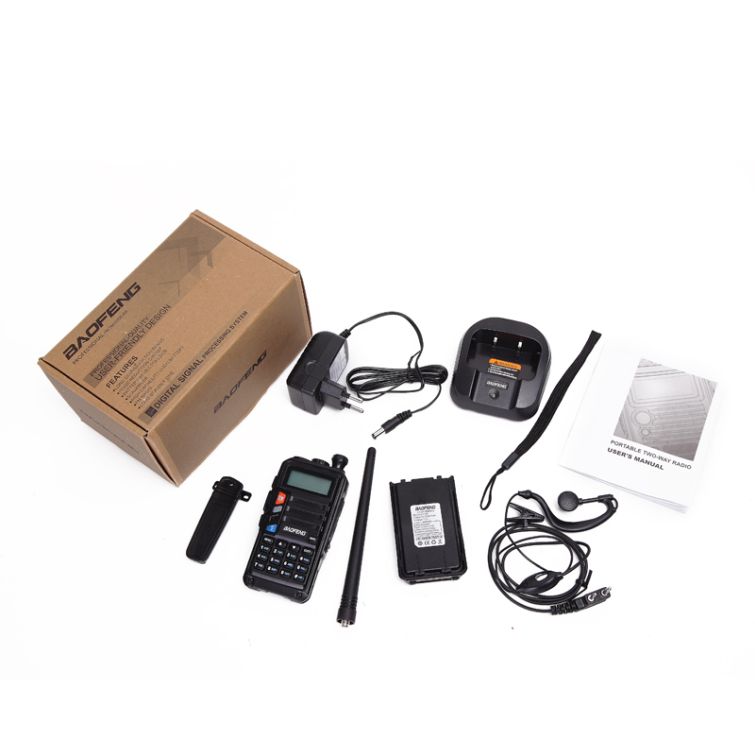

Package include:
· 1 X Portable
radio
· 1 X
Inductively loaded antenna
· 1 X 2800mAh
Li-ion battery pack
· 1 X LI-ion
charger
· 1 X Belt clip
· 1 X The Sling
· 1 X User's
manual
Note:

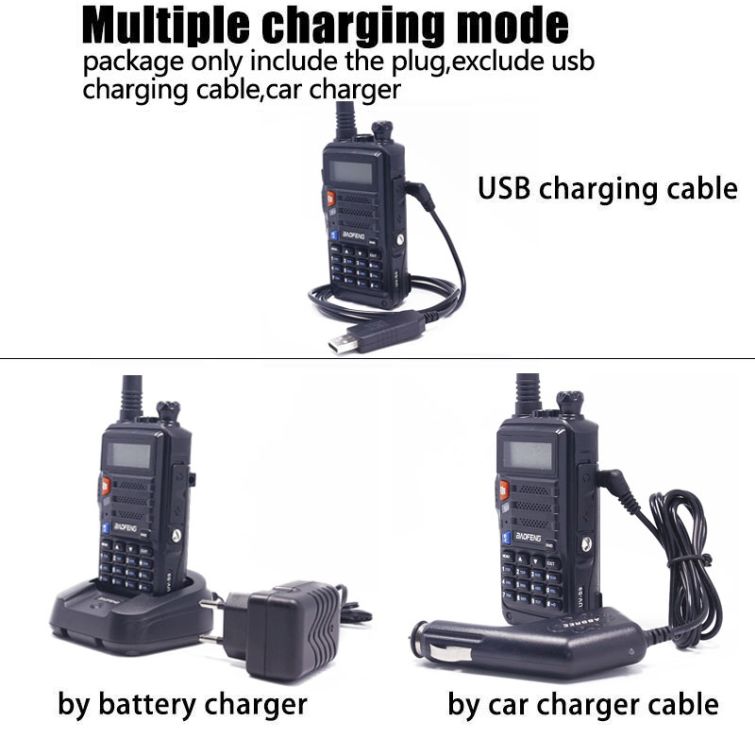

With optional methods to charge the battery. But the
standard does not include the USB cable and car charger cable.
|
