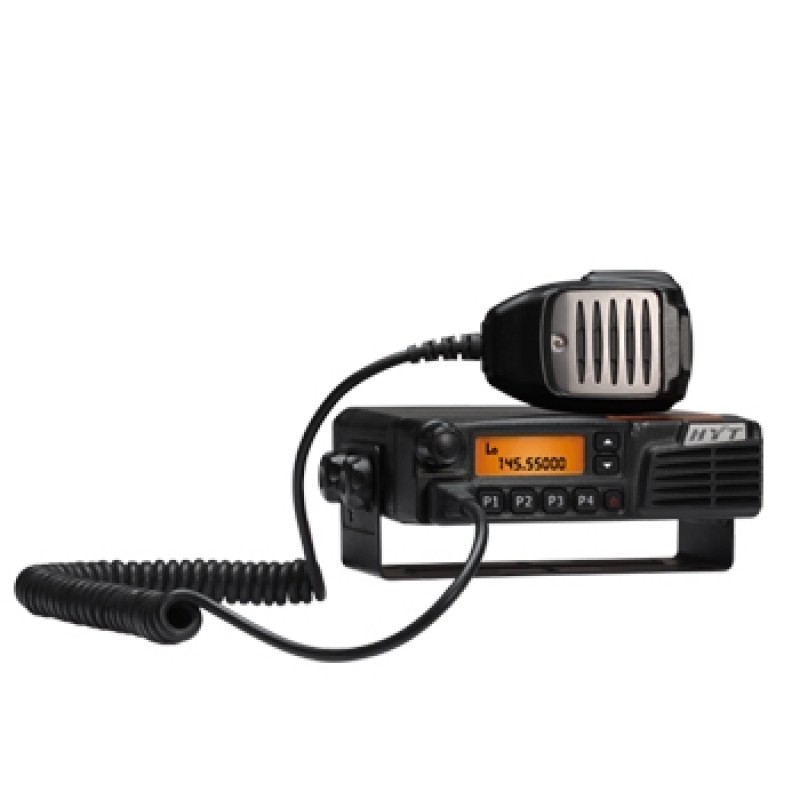

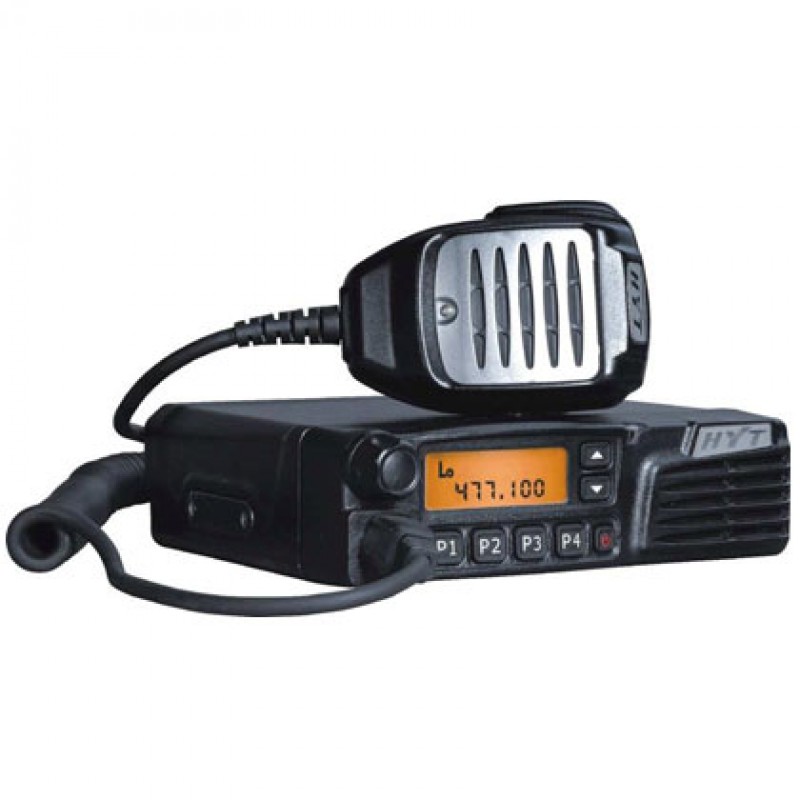

HYT TM-610 VHF
136-174MHz UHF 400-470 MHz 25W Mobile Radio
The TM-610 is a powerful and easy to operate
mobile radio. These mobile radio will ensure a reliable communication required
for efficient work.
HYT TM-610 features:
128 Channels
Versatile Scan
Large 15-segment LCD display
6 Programmable keys
Decode and Encode
Scrambler
Built in
UST (User Selectable Tone) CTCSS & CDCSS
Emergency alarms. Stuns & Revive
Functions:
Frequency Range: UHF 400-470 MHz / VHF
136-174MHz
128 Channels
RF Power Output 5W/25W
Password Protection
Built-In Scrambler
Public Address (PA)
Programmable Backlit Keys
The high-performance, yet simple-to-use TM-610
mobile is created to give you the immediate, reliable communication you need to
keep mobile teams working efficiently. HYT's voice compander audio enhancement
and a powerful 5W internal or 13W external speaker ensure superb clear, crisp
sound, even in noisy environments. It's compact design makes these radios ideal
when mounting space is a constraint.
Super Features
Compact Design
These compact mobile radios are ideal for
mounting when space isconstraint.
Wide-Band Coverage
These radios provide wide band capability for
users requiring a largerange of frequencies. VHF is 136-174 MHz and UHF is
400-470 MHzand 450-500 MHz.
Powerful Audio
HYT's voice compander audio enhancement and a
powerful 5W internalor 13W external speaker will provide superb clear, crisp
sound, even innoisy environments.
Built-in Scrambler
Maintaining private and secure communications
is increasingly important,with potentially sensitive information flowing back
and forth. Thescrambler feature provides enhanced security for your important
andprivate communications.
Versatile Signallings
The TM-610 mobiles are packed with a full range
ofsignalling capabilities, including CTCSS, CDCSS, DTMF Encode, 2-Tone,HYT
exclusive HDC2400TM * & HDC1200TM * signaling
Password Protection
These radios have an internal password that
helps protect the radioinformation and also helps to prevent unauthorized
cloning of the radio.
128 Channels
The 128 channel and zoning capability of the
TM-610 offers flexibility inorganizing work groups. Each channel and zone can
be assigned a userfriendly name for easy identification. Dynamic regrouping
offers flexibilityin a changing work group environment.
Main Features
Public Address (PA)
The public address feature feeds microphone
audio through a powerfulPA amplifier to the external speaker, offering robust,
out of vehicle, audioclarity.
Large 15-Segment LCD Display
Users may toggle the display to channels or
zones, auto dial numbers orother functional settings. The keypad and display
illuminates to providevisibility for night time operation.

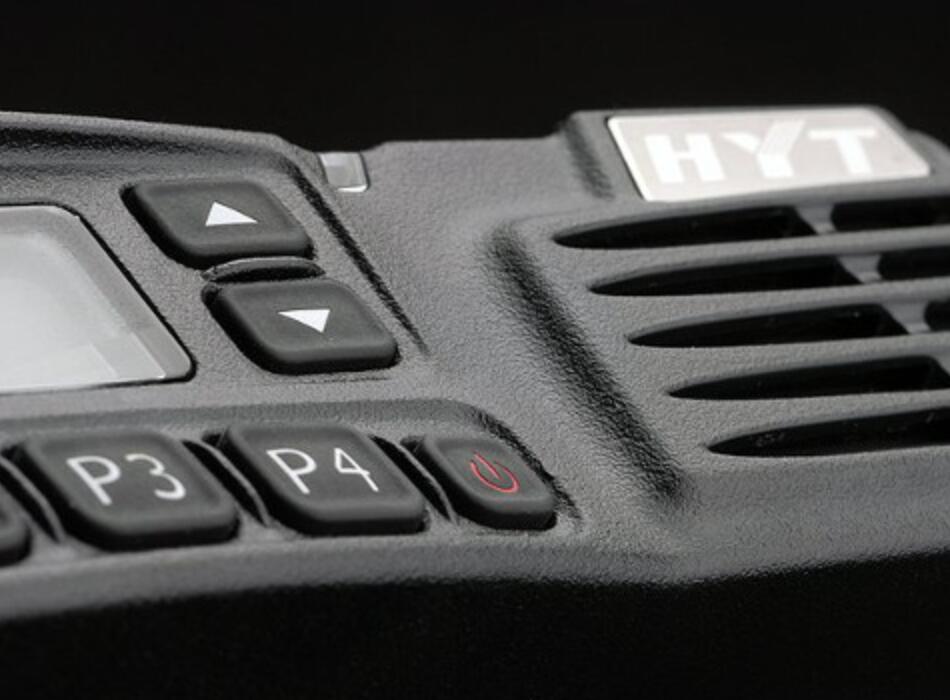

6 / 4 Programmable Backlit Keys
Provides immediate, easy access to your most
often used features.
Versatile Scan
The TM-610 scan allows for single or multiple
zone scanning. Scanningfeatures include add / delete scan channels, nuisance
channel deleteand user selectable priority channel.
Wired Cloning / MSK Wireless Cloning
Allows users to quickly and easily duplicate
one radio's parameters intoanother radio.
UST (User Selectable Tone)
The user can select CTCSS/CDCSS codes via the
programmed functionkey.
DTMF Function
The DTMF calling function offers flexible
dialing procedures of aliasdialing, auto dial and redial as well as manual
dialing. Customized, userfriendly number storage can be used for your most
often called numbers.
Built-in Modem *
The built-in 1200/2400bps MSK modulator offers
data transmissioncapability.
Emergency Alarm
The emergency button allows for a transmission
of a signal indicating anemergency situation.
*Due to continuous technology development,
functions with a * mark contained in this catalogwill be achieved by HYT in the
future.
Specifications:
General
|
Frequency Range
|
136-174MHz; 400-470MHz
|
Channel Capacity
|
8 (TM-600) 128 (TM-610)
|
Zone Capacity
|
16 (TM-610)
|
Channel Spacing
|
25/20/12.5KHz
|
Operating Voltage
|
13.6V DC ±15%
|
Current Drain
|
Standby:
|
0.5A
|
Receive:
|
<2.0A
|
Transmit:
|
<5A(5W)/<8A (25W)
|
Frequency Stability
|
±2.5ppm
|
Operating Temperature
|
-30°C~+60°C
|
Antenna Impedance
|
50Ω
|
Dimensions (W×H×D)
|
152mm×43mm×125mm
|
Weight
|
1Kg
|
Transmitter
|
RF Power Output
|
5W /25W
|
Modulation
|
16KΦF3E/11KΦF3E
|
Spurious and Harmonics
|
-36dBm < 1GHz -30dBm > 1GHz
|
FM Noise
|
>45dB (25/20KHz) >40dB (12.5KHz)
|
Audio Distortion
|
≤3%
|
Receiver
|
Sensitivity
|
0.28/0.33/0.35 μV
|
Selectivity
|
75/70/65dB
|
Intermodulation
|
70/70/65dB
|
Spurious Response Rejection
|
70dB
|
S/N (wide/medium/narrow)
|
>45dB (25/20KHz) >40dB (12.5KHz)
|
Internal Audio Power Output (Rated)
|
5W (less than 5% distortion) 3W (less than 3%
distortion)
|
External Audio Power Output (Rated)
|
13W (less than 5% distortion) 10W (less than
3% distortion)
|
Applicable Military Standards 810C/D/E/F
Applicable MIL-STD
|
810C Methods Procedures
|
810D Methods Procedures
|
810E Methods Procedures
|
810F Methods Procedures
|
Low Pressure
|
500.1 1
|
500.2 1,2
|
500.3 1,2
|
500.4 1
|
High Temperature
|
501.1 1,2
|
501.2 1,2
|
501.3 1,2
|
501.4 1,2
|
Low Temperature
|
502.1 1
|
502.2 1,2
|
502.3 1,2
|
502.4 1,2
|
Temp. Shock
|
503.1 1
|
503.2 1
|
503.3 1
|
503.4 1
|
Solar Radiation
|
505.1 1
|
505.2 1
|
505.3 1
|
505.4 1
|
Rain
|
506.1 2
|
506.2 2
|
506.3 2
|
506.4 1,2
|
Humidity
|
507.1 2
|
507.2 2,3
|
507.3 2,3
|
507.4 1
|
Salt Fog
|
509.1 1
|
509.2 1
|
509.3 1
|
509.4 1
|
Dust
|
510.1 1
|
510.2 1
|
510.3 1
|
510.4 1
|
Vibration
|
514.2 8,10
|
514.3 1
|
514.4 1
|
514.5 1
|
Shock
|
516.2 1,2,5
|
516.3 1,4
|
516.4 1,4
|
516.5 1,4
|
Each HYT TM-610 includes:
Mobile radio
Power cable
Installation bracket
User manual
|
