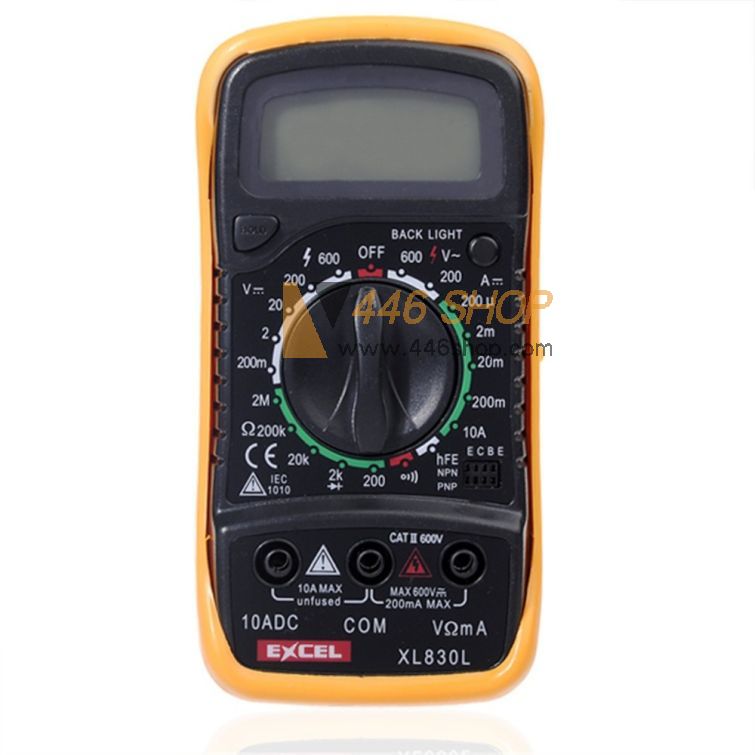

Excel XL830L LCD Digital Voltmeter Ohmmeter Ammeter OHM Multimeter Tester


This is a XL830L handheld digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode and Transistor, with battery operated. It is so easy and efficient, so practical for electrician use.



Easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.



Features :

 Model : XL830L

 15mm high LCD Display

 Max display : 1999, Auto polarity display

 Portable and compact design;overload protection on all ranges

 Diode assembly test / Transistor P-N junction test/Transistor HFE test

 Continuity test with buzzer sound in circuit

 Low battery voltage indication

 Data hold function



 DC Voltage : 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%

 AC Voltage : 200V/600V +- 1.2%

 DC Current : 200μA, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3%

 Resistance : 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8%

 Display : LCD, 1999 counts

 Fuse protection : F-200mA/250V

 Operating Temperature : -0C to 40C

 Overrange Indication : Only figure "1" on the display

 Polarity Indication : "-" displayed for negative polarity

 Low Battery Indication : - /+ display

Power by One 9V battery (installed)



Specifications :

Maximum voltage between terminals and earth ground

CAT II600V

Fuse protection  F 200mA/250V

Power  9V battery, NEDA1640 or 6F22

Display  LCD, 1999 counts, updates 2-3/sec

Measuring method  Dual-slope integration A/D converter

Overrange Indication  Only figure “1” on the display

Polarity indication  “-“ displayed for negative polarity

Operating Environment  0 to 40 Celsius

Storage temperature  -10 to 50 Celsius

Low battery indication  “- +” appears on the display

Size  138mmX 69mm X 31mm

Weight  Approx. 240g



Notes :

 Please do not change the inner circuit to avoid damaging the ammeter.

 Do not connect it to the voltage over 1000VDC or 750VAC.

 Make sure not connect the error measure range.

 Please do not use the ammeter if the back cover is wrong.

 Please remove the pen and cut off the power before replacing battery and fuze.



Package includes :

 1 x XL830L Digital LCD Multimeter

 1 x Test Leads line(red&black)

 1 x 9V Battery Included

 1 x User Manual
