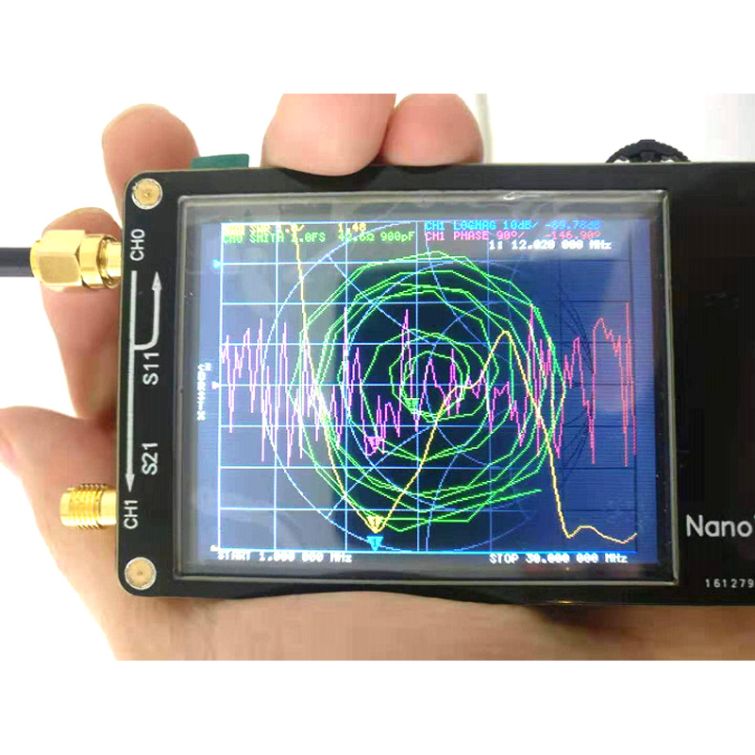

NanoVNA 50KHz - 300MHz Vector Network Analyzer MF HF VHF UHF Antenna Analyzer

NanoVNA Vector network analyzer 50KHz - 300MHz Digital Display Touch Screen Shortwave MF HF VHF UHF Antenna Analyzer Standing Wave (battery Not included )

Description Features:

Touchstone (snp) files can be exported via PC-side software for a variety of radio design and simulation software. The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz. The metal shield is designed to reduce the external interference and improve the measurement accuracy. The 50535-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. The extended 300M-600MHz band provides better than 60dB of dynamics, and the 600M-900M band is better than 50dB of dynamics.

This is a DIY product, vector network measurement function. It includes a 2.8-inch touch screen, TX/RX measurement, can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring. If there are other imperfections, you can communicate with me.

Basic performance:

● PCB: 54mm x 85.5mm x 11mm (without connectors, switches)

● Measurement frequency: 50KHz ~ 300MHz (50KHz -900MHz, enable extended firmware)

● RF output: -13dbm (maximum -9dbm)

● Measurement range: 70dB (50kHz-300MHz), 60dB (300M-600MHz), 50dB (600M-900MHz) enable extended firmware);

● Port SWR: < 1.1

● Display: 2.8 inch TFT (320 x240)

● USB interface: USB type-C communication mode: CDC (serial)

● Power: USB 5V 120mA, can use battery powered, maximum charging current 0.8A (battery Not included )

● Number of scanning points: 101 (fixed)

● Display Tracking: 4, Marking: 4, Setting Save: 5

Package Contents:

1x NanoVNA host

1x USB Type-C data cable

2x 30mm SMA male to male cable

1x SMA female to female connector

(battery Not included )

Operating instructions and PC control software

http://www.446shop.com/help/help5-18.html
