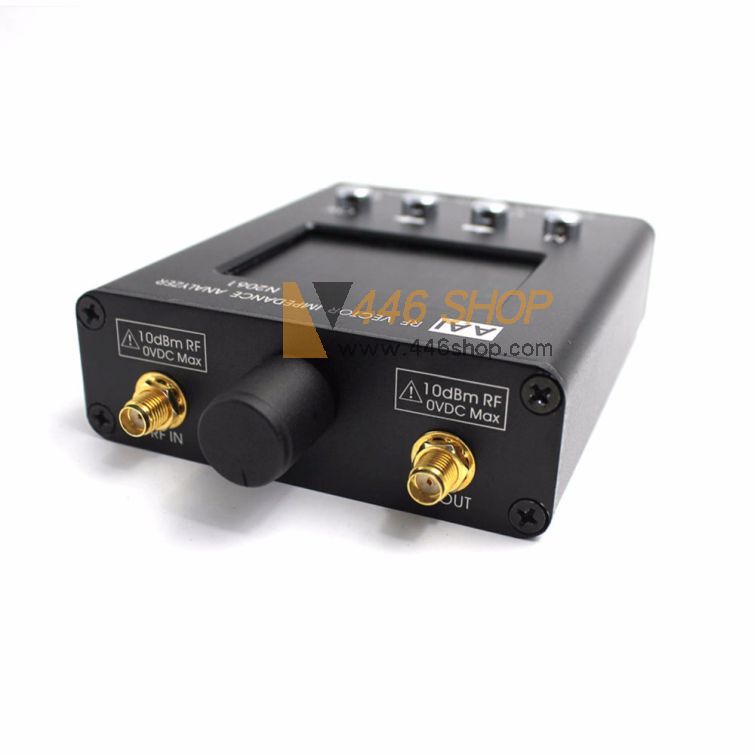

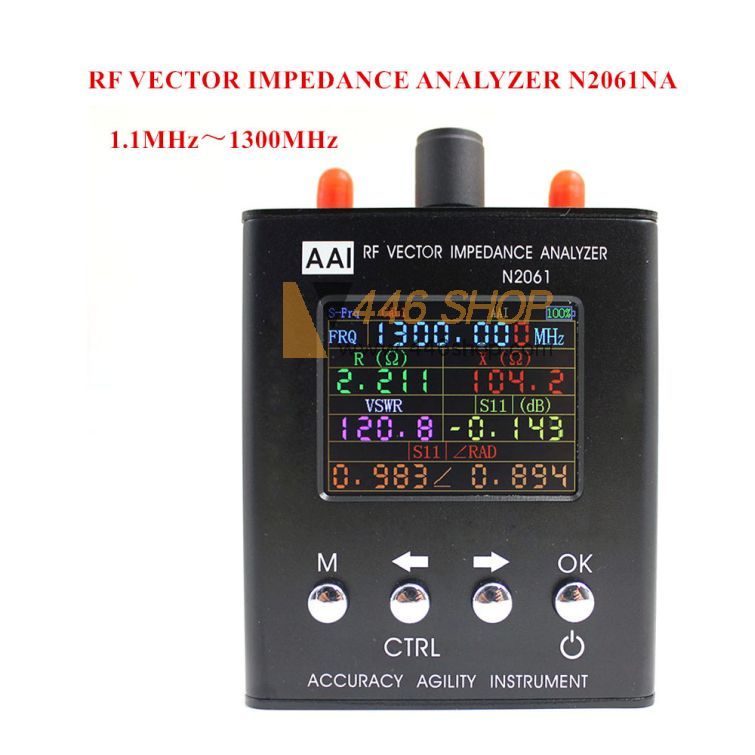

N2061SA 1.1mhz to 1300MHz UV RFID Vector Impedance Antenna Analyzer
English version Short Wave Antenna Analyzer Frequency range 1.1MHz~1300MHz Resistance Impedance SWR RFID antenna impedance analyzer talent increased UV short wave 1.1MHz-1300MHz
S11 working Frequency 1.11MHz~1300MHz
S21 working Frequency 1.11MHz~600MHz
Spacing 1kHz
Display 2.4inch TFT Pixel 320×240(QVGA)
Battery 2000mAH(7.4Wh)
Power dissipation <1.5W
Charging current 400mA
Charging port USB (For charging only)
Auto Power Off Adjustable(Always on，5mins～60min)
Measure facts resistance/reactance/SWR/s11
Resolution ratio 4bits effective digits
Frequency accuracy ±5ppm
Connector SMA-K
Measuring range impedance 0.1Ω~1000Ω (Absolute value of impedance)
SWR 1.000~65
s11 (dB) 0dB~-60dB
Error (single point measurement) impedance
SWR
s11 （dB/°） 0.1 dB /5° (0dB~-10dB)
1 dB /10° (-10dB~-20dB)
5dB/20° (-20dB~-40dB)
directivity <35dB (140MHz~2GHz After calibration)
<30dB(2GHz~2.7GHz)
Scan Points 280
output level -18dBm
Working temperature 0~40
Atmospheric pressure 860hPa~1060hPa
Dimension 120mm*86mm*30mm
|
Model
|
N2061SA
|
|
S11 Working frequency
|
1.11MHz～1300MHz
|
|
S21 Working frequency
|
1.11MHz～600MHz
|
|
The frequency step by step
|
1kHz
|
|
display
|
2.4 inch TFT Resolving power 320×240（QVGA）
|
|
Battery capacity
|
2000mAH（7.4Wh）
|
|
Power consumption
|
<1.5W
|
|
Charging current
|
400mA
|
|
Charger port
|
USB (only act as charge port)
|
|
Automatic shut-down
|
Can be set
(it has been open for 5minutes～60minutes optional)
|
|
Measurement parameters
|
resistance，reactance，standing，s11,s21
|
|
resolution
|
Four significant figures
|
|
Frequency accuracy
|
<±10ppm
|
|
connector
|
SMA-K
|
|
Measurement range
|
impedance
|
1Ω～1000Ω（The absolute value of the impedance）
|
|
|
standing
|
1.000～65
|
|
|
s11（dB）
|
0dB～-50dB
|
|
|
s21（dB）
|
6dB～-60dB
|
|
error
|
s21（dB）
|
+/-3Db(6dB～-60dB)
|
|
Error (s11 single-point measurement)
|
impedance
|
< The absolute value of the impedance×10%±0.1Ω
|
|
（Z<200Ω, 1.1MHz～600MHz ,137.5MHz～1300MHz）
|
|
< The absolute value of the impedance×10%±0.1Ω
|
|
（Z<200Ω, 60MHz～137.5MHz）
|
|
|
standing
|
< Effective reading×10%±0.1
|
|
|
s11
|
0.1 dB /5° (0dB～-10dB)
|
|
|
（dB/°）
|
1 dB /10° (-10dB~-20dB)
|
|
|
|
|
|
5dB/20° (-20dB~-40dB)
|
|
Error（S21）
|
S21
|
±2dB
|
|
S11 directivity
|
<35dB(after calibration)
|
|
Sweep Points
|
280
|
|
Output level
|
-18dBm
|
|
working temperature
|
5℃～40℃
|
|
atmospheric pressure
|
860hPa～1060hPa
|
|
Cable length measurement
|
|
|
Characteristic impedance measurement of transmission line
|
|

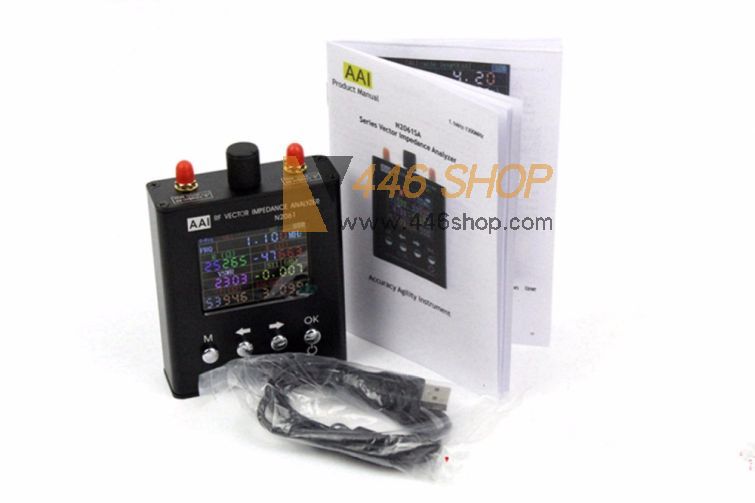

Each Package Contain:
1x N2061SA UV RF Vector Impedance ANT SWR Antenna Analyzer Meter
1x User Manuel
1x Charging Line
|
